(Solved): For the solid bent rod shown below, find the maximum bending moment at point A due to the static lo ...

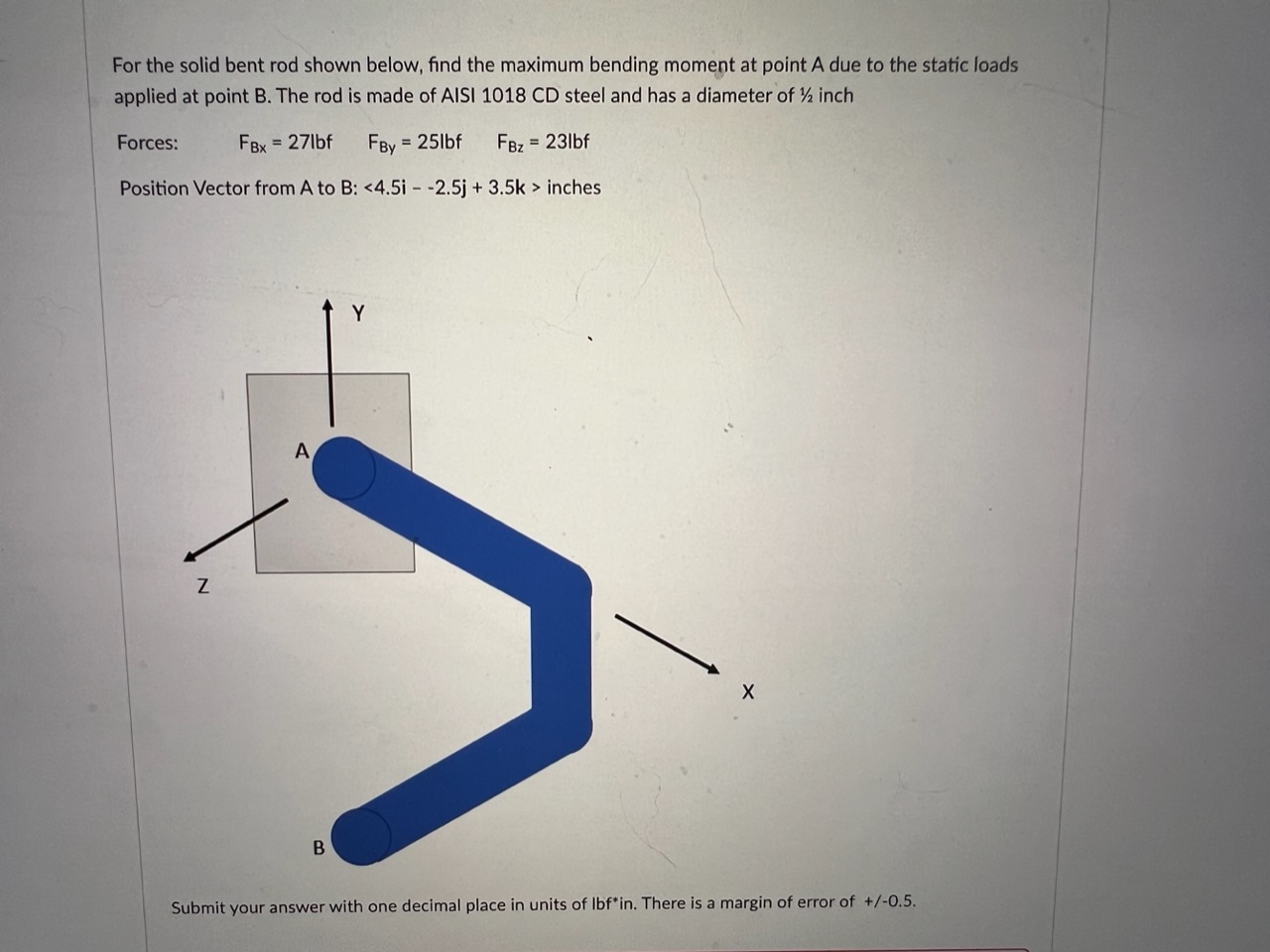

For the solid bent rod shown below, find the maximum bending moment at point A due to the static loads applied at point B. The rod is made of AISI 1018 CD steel and has a diameter of 1/2 inch Forces: FBx?=27bfFBy?=25bfFBz?=23bf Position Vector from A to B:<4.5i??2.5j+3.5k> inches Submit your answer with one decimal place in units of Ibff? in. There is a margin of error of +/?0.5.
