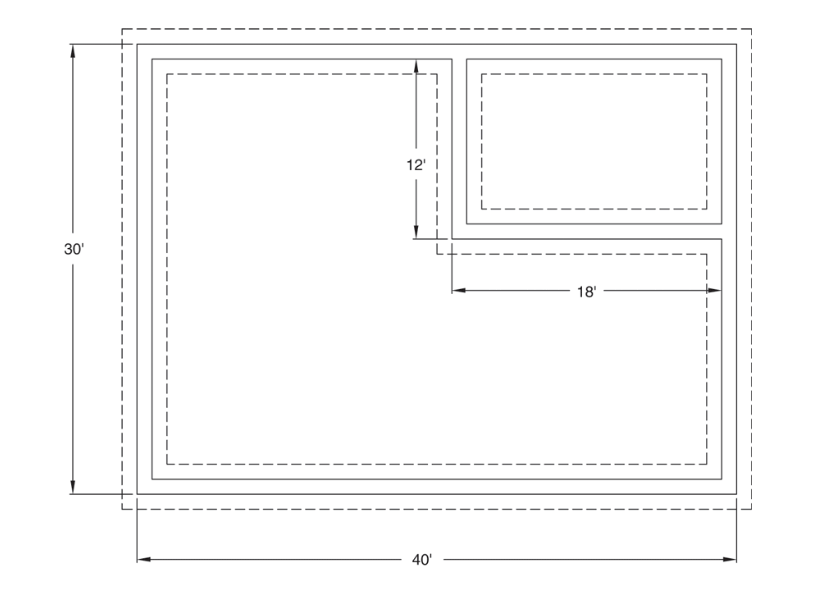

For the given foundation plan and cross-section, estimate the following:

(1) quantity of concrete – ___________ cy

(2) quantity of formwork – ___________ sy

(3) quantity of reinforcement – ___________ tons (2,000 lbs = 1 ton)

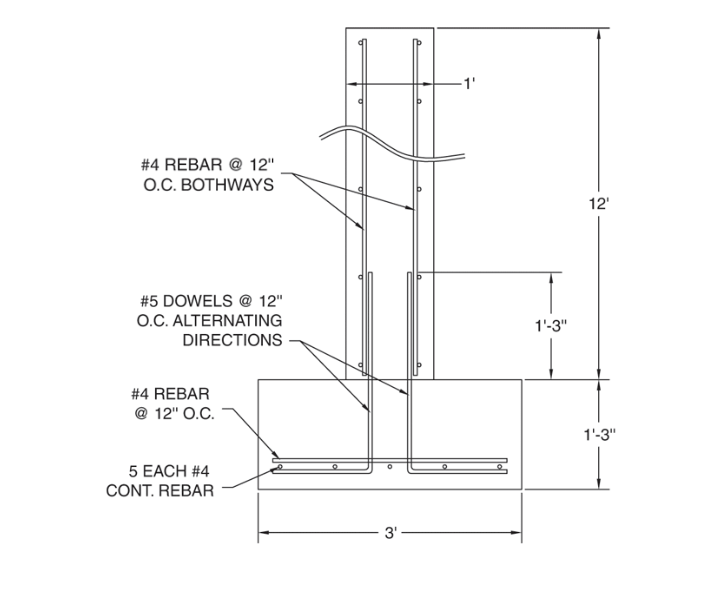

#4 rebar @12" o.c. both ways

#5 dowels @12" o.c. alternating directions

#4 rebar @12" o.c.

5 each #4 cont.rebar
