(Solved): For the following pin-jointed structures, determine the reactions at the supports and all member fo ...

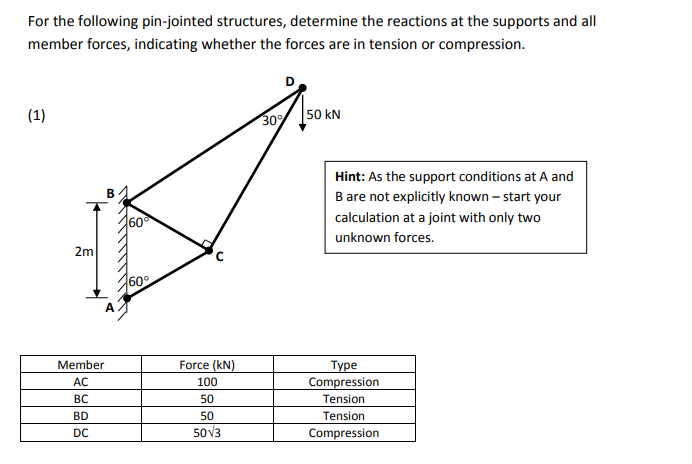

For the following pin-jointed structures, determine the reactions at the supports and all member forces, indicating whether the forces are in tension or compression. $?\mathrm{N}$ Hint: As the support conditions at A and B are not explicitly known - start your calculation at a joint with only two unknown forces.
