(Solved): For the following circuit, complete the timing diagram. The time between two blue lines is equal to ...

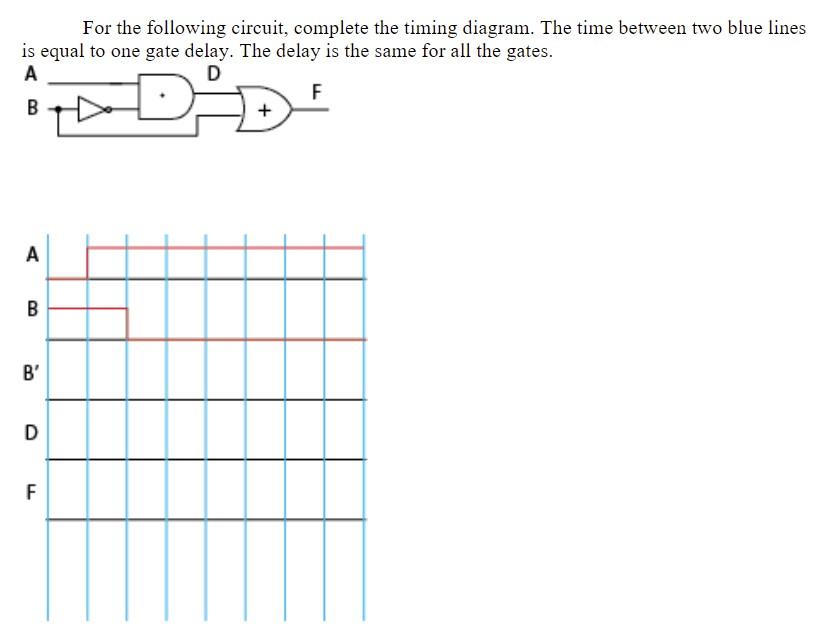

For the following circuit, complete the timing diagram. The time between two blue lines is equal to one gate delay. The delay is the same for all the gates.
For the following circuit, complete the timing diagram. The time between two blue lines is equal to one gate delay. The delay is the same for all the gates.
