(Solved): For the clocked S.R latch timing diagram below, determine the value of the output \( Q \) for each ...

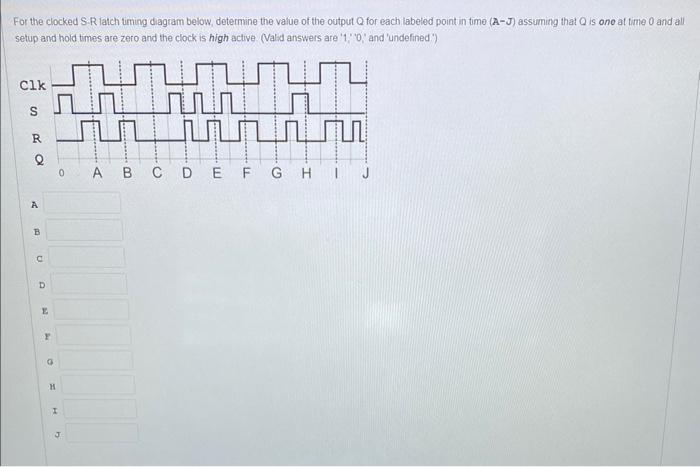

For the clocked S.R latch timing diagram below, determine the value of the output \( Q \) for each labeled point in time (A-J) assuming that \( Q \) is ono at time 0 and all setup and hold times are zero and the clock is high active (Valid answers are '1, " 0 ,' and 'undefined')
