(Solved): For the circuit shown, the battery has a voltage of 12.4V, the resistor has a resistance of 87.4 ...

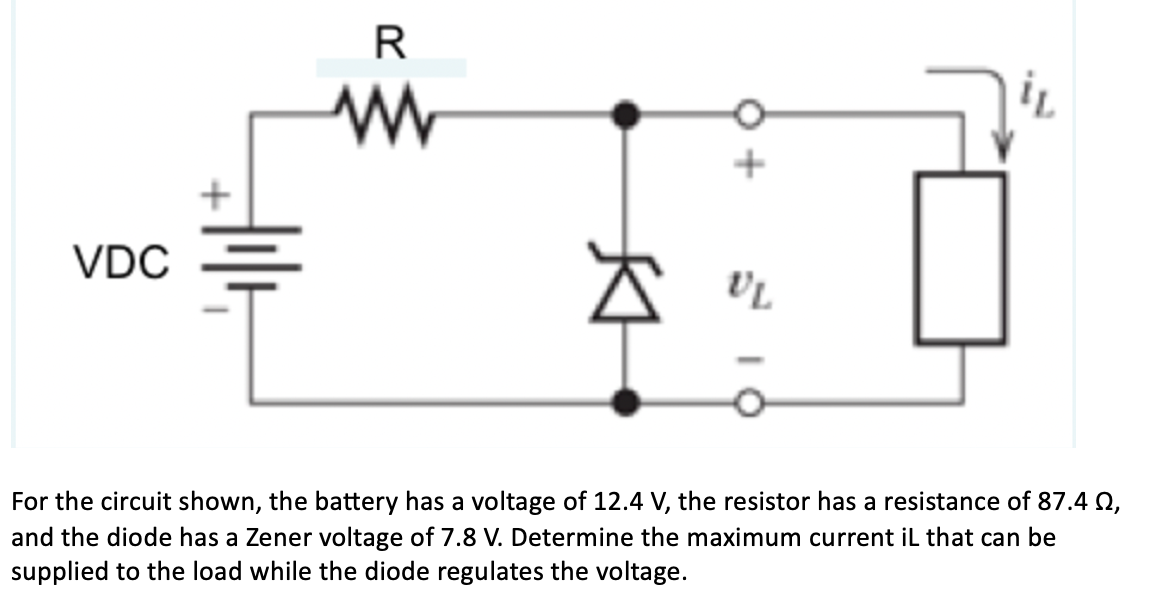

For the circuit shown, the battery has a voltage of , the resistor has a resistance of , and the diode has a Zener voltage of . Determine the maximum current iL that can be supplied to the load while the diode regulates the voltage.
