(Solved): For the circuit shown in the given figure, Vs=700VVs=700 ...

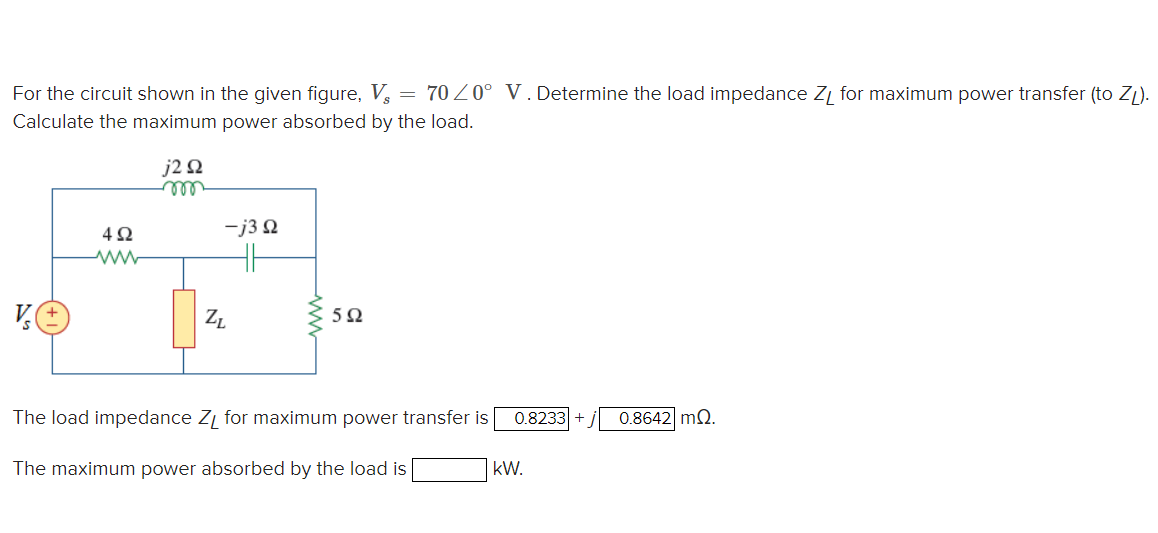

For the circuit shown in the given figure, Vs=?70???0????VVs?=?70???0?????V . Determine the load impedance Z_L for maximum power transfer (to Z_L). Calculate the maximum power absorbed by the load.

The load impedance Z_L for maximum power transfer is  + j  m?.

The maximum power absorbed by the load is  kW.

For the circuit shown in the given figure, \( V_{s}=70 \angle 0^{\circ} \mathrm{V} \). Determine the load impedance \( Z_{L} \) for maximum power transfer (to \( Z_{L} \) ). Calculate the maximum power absorbed by the load. The load impedance \( Z_{L} \) for maximum power transfer is \( \quad+j \quad \mathrm{~m} \Omega \). The maximum power absorbed by the load is
