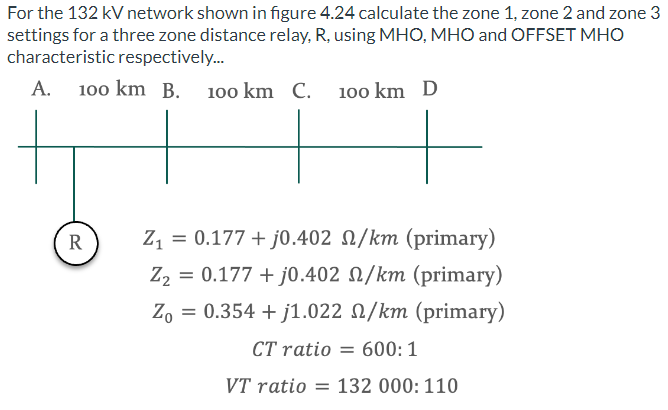

For the 132kV network shown in figure 4.24 calculate the zone 1 , zone 2 and zone 3 settings for a three zone distance relay, R, using MHO,MHO and OFFSET MHO characteristic respectively... (R)Z1?=0.177+j0.402?/km(primary)Z2?=0.177+j0.402?/km(primary)Z0?=0.354+j1.022?/km(primary)CTratio=600:1VTratio=132000:110? solutionspile.com
