(Solved): Figure P5-4 Problem: For beam with the loading shown in the figure below, determine the following: A ...

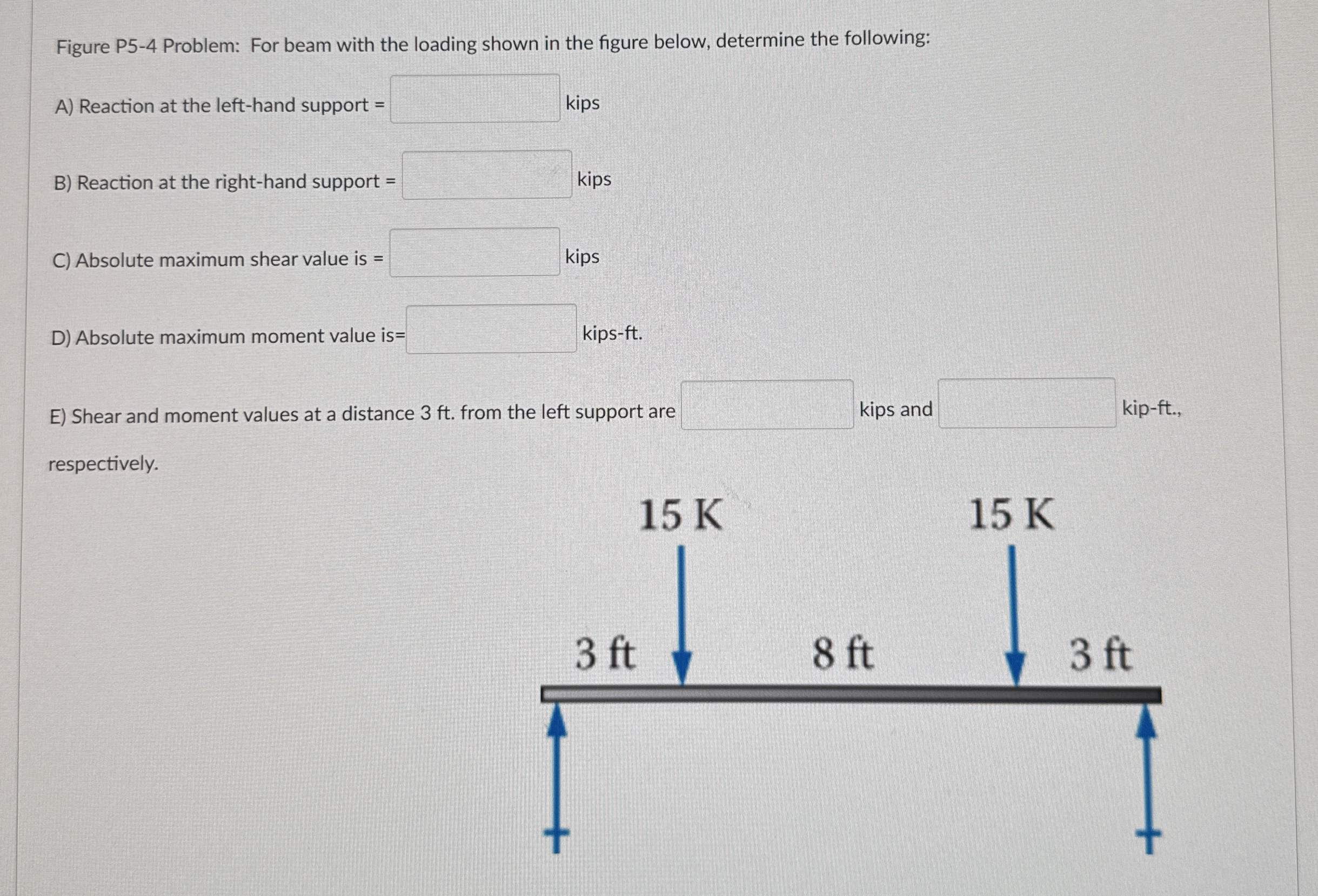

Figure P5-4 Problem: For beam with the loading shown in the figure below, determine the following: A) Reaction at the left-hand support
=kips B) Reaction at the right-hand support =
?kips Absolute maximum shear value is
=
?kips D) Absolute maximum moment value is= kips-ft. E) Shear and moment values at a distance 3 ft . from the left support are
?kips and kip-ft., respectively.
