(Solved): Figure 23: Op-amp circuit with a class AB output stage on its output. Consider the situation in whi ...

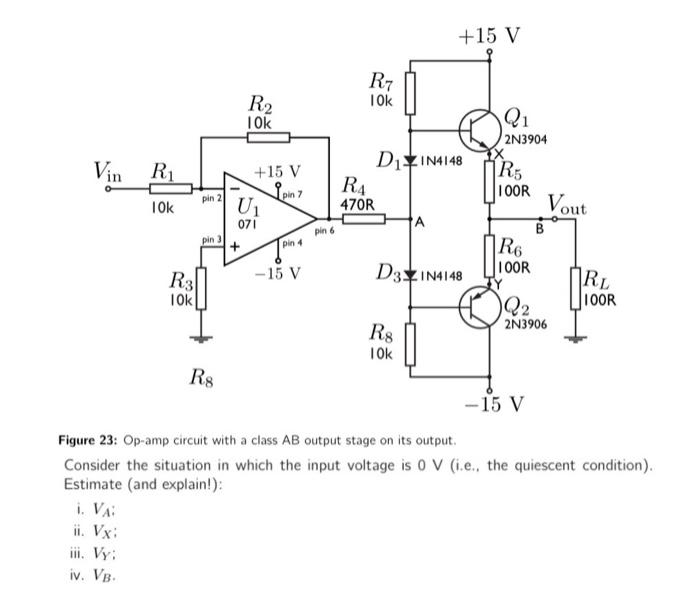

Figure 23: Op-amp circuit with a class output stage on its output. Consider the situation in which the input voltage is (i.e., the quiescent condition). Estimate (and explain!): i. : ii. ; iii. ; iv. .
