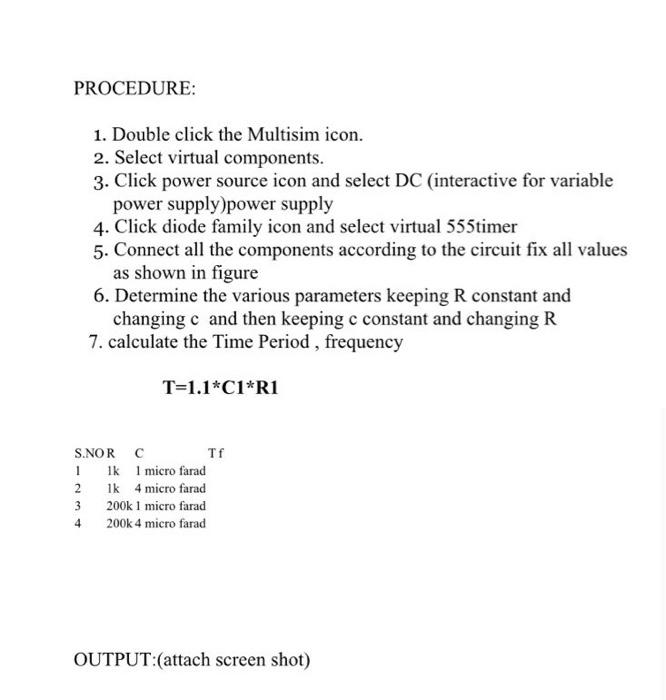

EXPERIMENT No:7 MONOSTABLE MULTIVIBRATOR USING NE555 TIMER OBJECTIVE: To study application of Ne 55 Timer as Monostable multivibrator CIRCUIT DIAGRAM: PROCEDURE: 1. Double click the Multisim icon. 2. Select virtual components. 3. Click power source icon and select DC (interactive for variable power supply)power supply 4. Click diode family icon and select virtual 555 timer 5. Connect all the components according to the circuit fix all values as shown in figure 6. Determine the various parameters keeping \( \mathrm{R} \) constant and changing \( \mathrm{c} \) and then keeping \( \mathrm{c} \) constant and changing \( \mathrm{R} \) 7. calculate the Time Period, frequency \[ \mathrm{T}=1.1^{*} \mathrm{C} 1 \text { * } \mathrm{R} 1 \] S.NOR C Tf 1 1k 1 micro farad \( 1 \mathrm{k} \quad 4 \) micro farad 200k 1 micro farad \( 4 \quad 200 \mathrm{k} 4 \) micro farad OUTPUT:(attach screen shot)
