(Solved): Exercise 4 For the fixed-bias common emitter configuration of Figure 2 below, determine IB, IC, VC ...

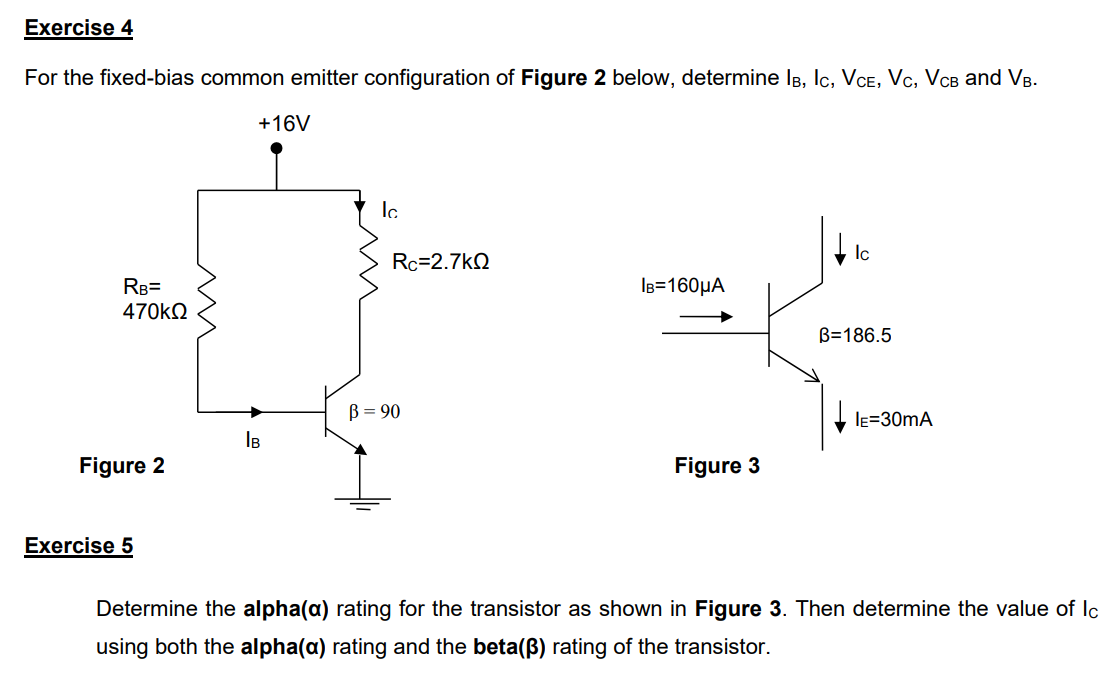

Exercise 4 For the fixed-bias common emitter configuration of Figure 2 below, determine IB, IC, VCE, Vc, VCB and VB. +16V Ic Rc=2.7kQ IB=160?A RB= 470?? B=186.5 B = 90 IE=30mA ?? Figure 3 Exercise 5 Determine the alpha(a) rating for the transistor as shown in Figure 3. Then determine the value of Ic using both the alpha(a) rating and the beta(ß) rating of the transistor. Figure 2
