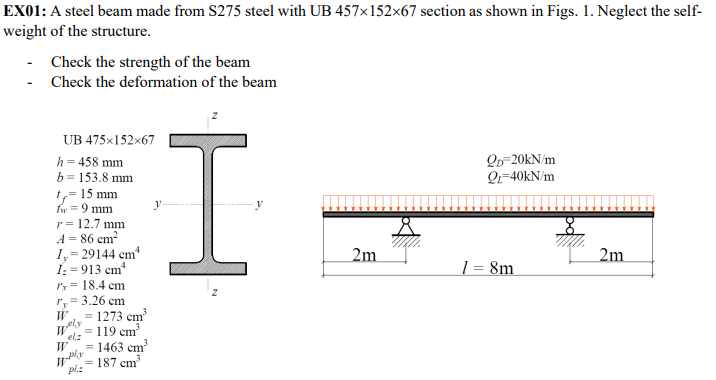

EX01: A steel beam made from S275 steel with UB \( 457 \times 152 \times 67 \) section as shown in Figs. 1. Neglect the selfweight of the structure. - Check the strength of the beam - Check the deformation of the beam \[ \begin{array}{l} \text { UB } 475 \times 152 \times 6 \\ h=458 \mathrm{~mm} \\ b=153.8 \mathrm{~mm} \\ t_{f}=15 \mathrm{~mm} \\ t_{w w}=9 \mathrm{~mm} \\ r=12.7 \mathrm{~mm} \\ A=86 \mathrm{~cm}^{2} \\ I_{y}=29144 \mathrm{~cm}^{4} \\ I_{z}=913 \mathrm{~cm}^{4} \\ r_{x}=18.4 \mathrm{~cm}^{2} \\ r_{y}=3.26 \mathrm{~cm} \\ W_{e l y}=1273 \mathrm{~cm}^{3} \\ W_{e l, z}=119 \mathrm{~cm}^{3} \\ W^{p l, y}=1463 \mathrm{~cm}^{3} \\ W_{p l, z}^{p, z}=187 \mathrm{~cm}^{3} \end{array} \]
