(Solved): ENGR102 Truss Lab - Truss \\#19 Given: Required: Before you arrive for your scheduled Lab B time yo ...

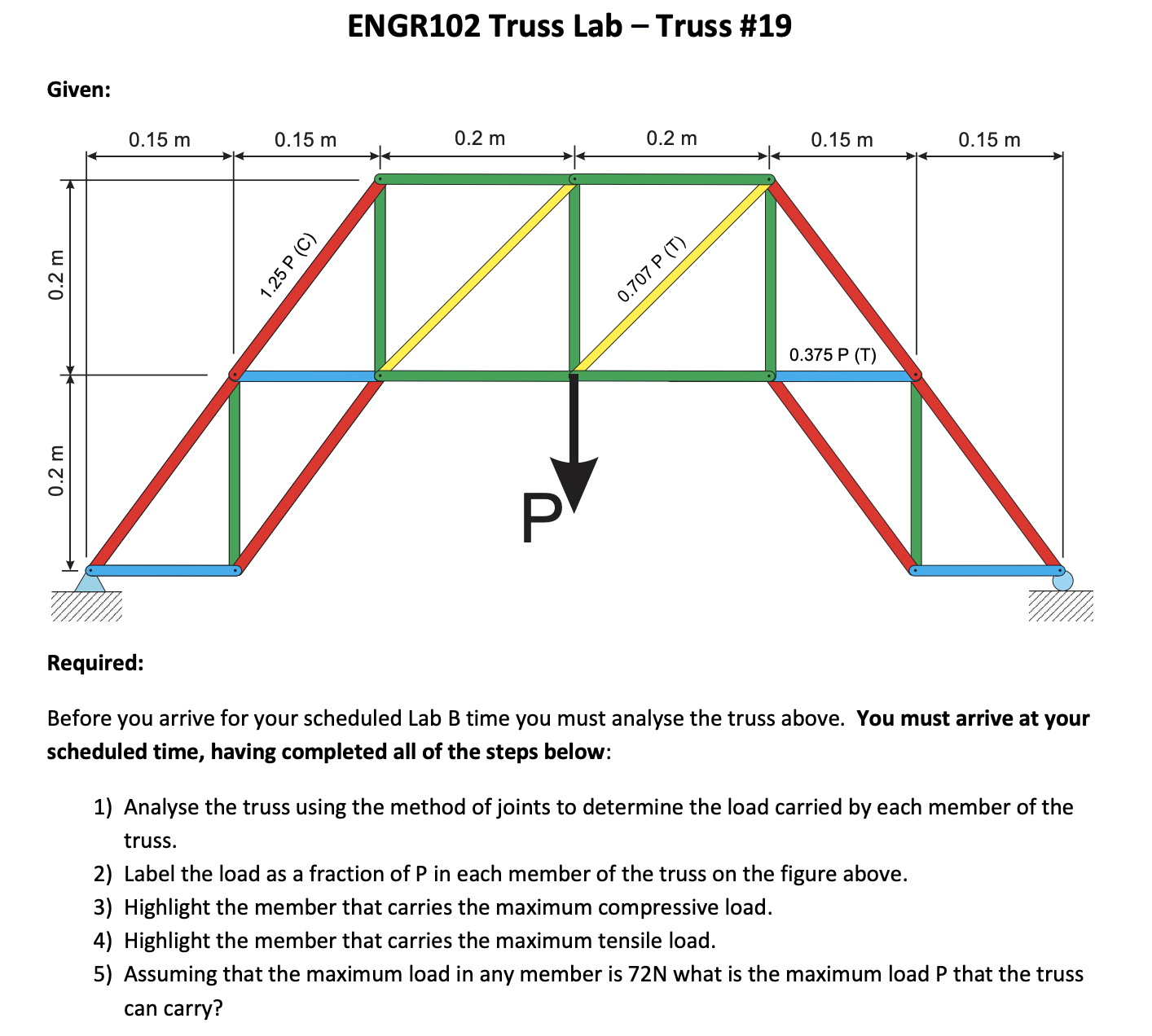

ENGR102 Truss Lab - Truss \\#19 Given: Required: Before you arrive for your scheduled Lab B time you must analyse the truss above. You must arrive at your scheduled time, having completed all of the steps below: 1) Analyse the truss using the method of joints to determine the load carried by each member of the truss. 2) Label the load as a fraction of \\( P \\) in each member of the truss on the figure above. 3) Highlight the member that carries the maximum compressive load. 4) Highlight the member that carries the maximum tensile load. 5) Assuming that the maximum load in any member is \\( 72 \\mathrm{~N} \\) what is the maximum load \\( \\mathrm{P} \\) that the truss can carry?
