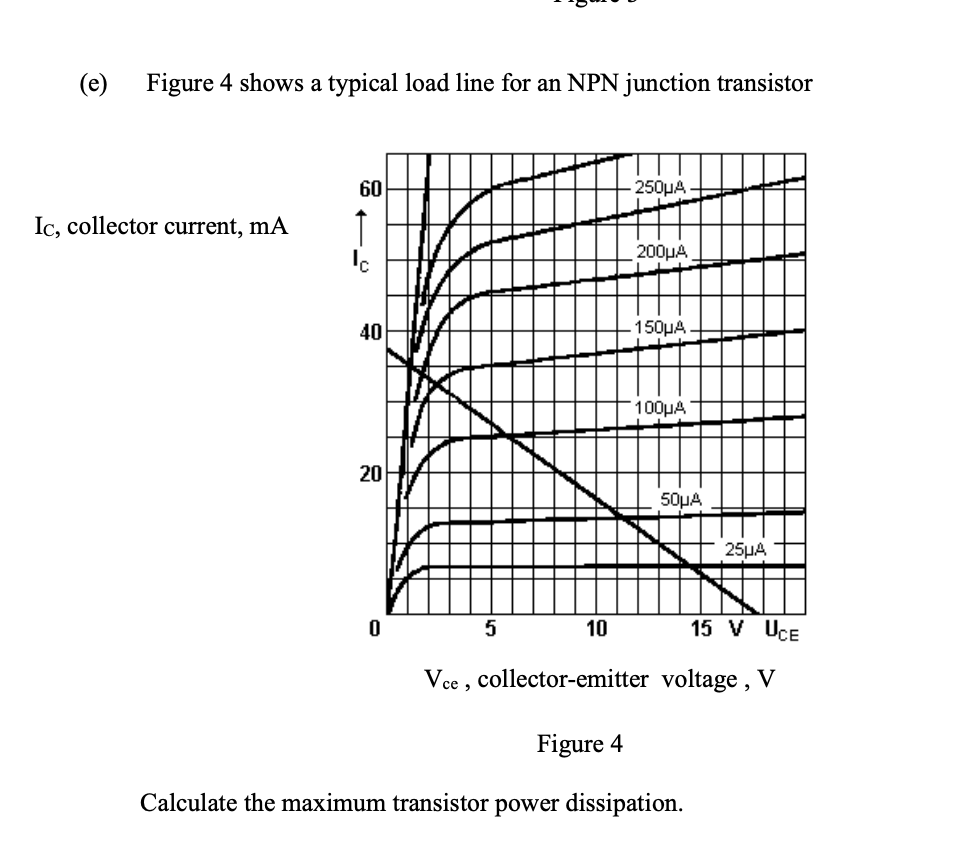

(e) Figure 4 shows a typical load line for an NPN junction transistor 60 250?A Tak Ic, collector current, mA 200?A 40 150?A 100?A 20 0 50?A 25?A 5 10 15 V UCE Vce, collector-emitter voltage, V Figure 4 Calculate the maximum transistor power dissipation. solutionspile.com
