(Solved): Draw the waveform of the input sine wave signal and the output waveforms of a positive half-wave re ...

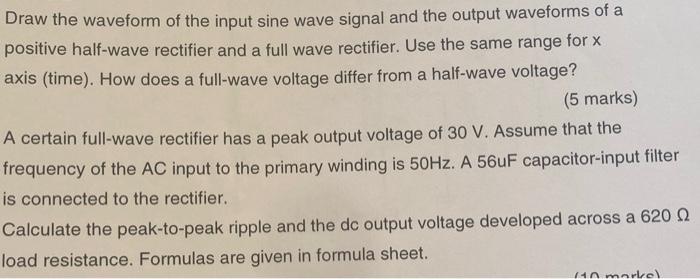

Draw the waveform of the input sine wave signal and the output waveforms of a positive half-wave rectifier and a full wave rectifier. Use the same range for \( x \) axis (time). How does a full-wave voltage differ from a half-wave voltage? (5 marks) A certain full-wave rectifier has a peak output voltage of \( 30 \mathrm{~V} \). Assume that the frequency of the \( \mathrm{AC} \) input to the primary winding is \( 50 \mathrm{~Hz} \). A 56 uF capacitor-input filter is connected to the rectifier. Calculate the peak-to-peak ripple and the dc output voltage developed across a \( 620 \Omega \) load resistance. Formulas are given in formula sheet. Determine the peak and ave (c) below: (10 marks)
