(Solved): Draw the state diagram (circles and arrows) for a state machine with the following specifications: ...

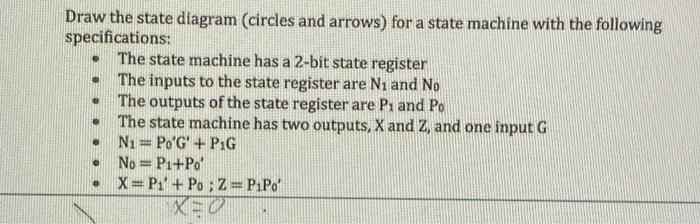

Draw the state diagram (circles and arrows) for a state machine with the following specifications: - The state machine has a 2-bit state register - The inputs to the state register are ${\mathrm{N}}_1$ and ${\mathrm{N}}_0$ - The outputs of the state register are $P_1$ and $P_0$ - The state machine has two outputs, X and Z, and one input G - ${\mathrm{N}}_1={\mathrm{P}}_0{\mathrm{G}}^{?}+{\mathrm{P}}_1\mathrm{G}$ - ${\mathrm{N}}_0={\mathrm{P}}_1+{\mathrm{P}}_0$ - $\mathrm{X}={\mathrm{P}}_1^{?}+{\mathrm{P}}_0;\mathrm{Z}={\mathrm{P}}_1{\mathrm{P}}_0^{?}$
