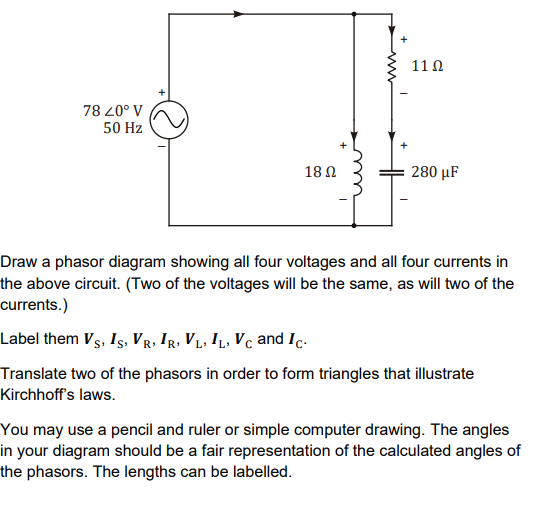

Draw a phasor diagram showing all four voltages and all four currents in the above circuit. (Two of the voltages will be the same, as will two of the currents.) Label them \\( \\boldsymbol{V}_{\\mathrm{S}}, \\boldsymbol{I}_{\\mathrm{S}}, \\boldsymbol{V}_{\\mathrm{R}}, \\boldsymbol{I}_{\\mathrm{R}}, \\boldsymbol{V}_{\\mathrm{L}}, \\boldsymbol{I}_{\\mathrm{L}}, \\boldsymbol{V}_{\\mathrm{C}} \\) and \\( \\boldsymbol{I}_{\\mathrm{C}} \\). Translate two of the phasors in order to form triangles that illustrate Kirchhoff's laws. You may use a pencil and ruler or simple computer drawing. The angles in your diagram should be a fair representation of the calculated angles of the phasors. The lengths can be labelled.
