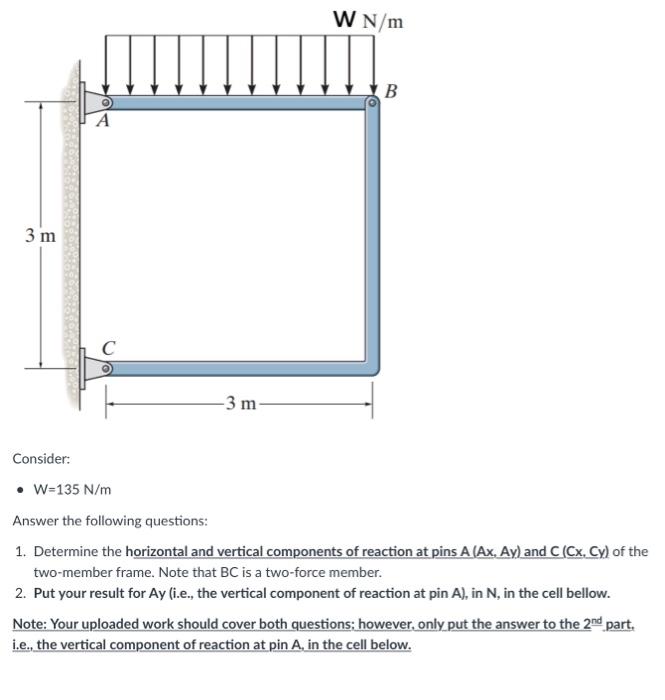

(Solved): Determine the horizontal and vertical components of reaction at pins A(Ax,Ay) and C(Cx,Cy) of the tw ...

Consider: - \( \mathrm{W}=135 \mathrm{~N} / \mathrm{m} \) Answer the following questions: 1. Determine the horizontal and vertical components of reaction at pins \( A(A x, A y) \) and \( C(C x, C y) \) of the two-member frame. Note that \( \mathrm{BC} \) is a two-force member. 2. Put your result for \( A y \) (i.e., the vertical component of reaction at pin \( A \) ), in \( \mathrm{N} \), in the cell bellow. Note: Your uploaded work should cover both questions: however. only put the answer to the \( 2^{\text {nd }} \), part, i.e., the vertical component of reaction at pin \( \mathrm{A} \), in the cell below.
