(Solved): Determine the developed torque and shaft torque of a DC motor of 220V, 4-pole series wound machine, ...

1. Determine the developed torque and shaft torque of a DC motor of 220V, 4-pole series wound machine, having 778 conductors which are lap-connected supplying a load of 9.5KW by taking a current of 48 A from the main supply. The flux per pole is given as 26mWb and the armature resistance is 0.7 ohm .(Draw also an illustration for series connected DC motor equivalent circuit)
2.

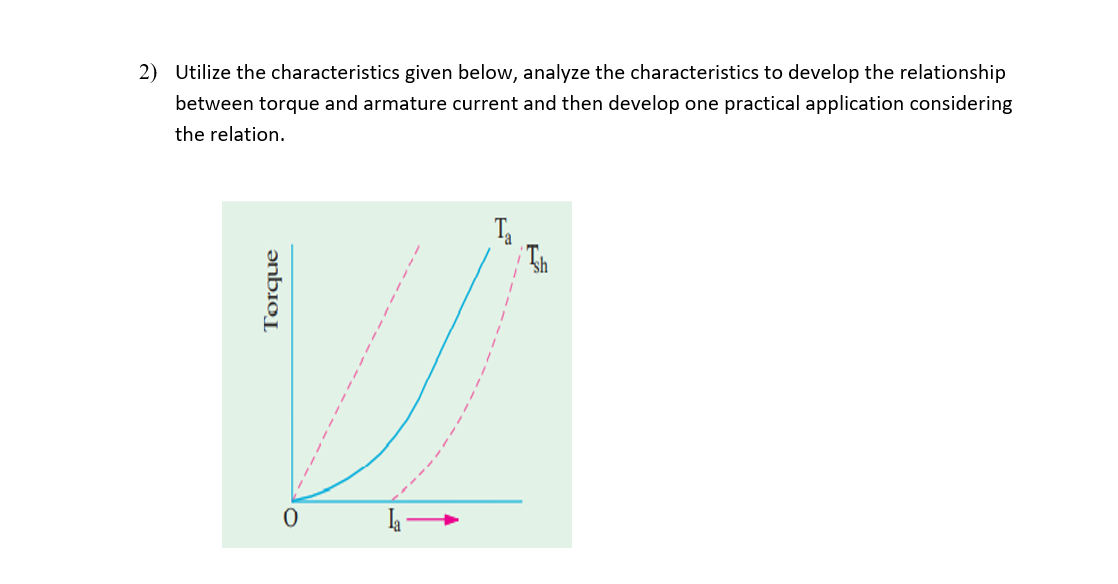

2) Utilize the characteristics given below, analyze the characteristics to develop the relationship between torque and armature current and then develop one practical application considering the relation. Torque 0 Ta Tsh 3) With the help of the equivalent circuit model of a separately excited DC generator, Develop an equation for the emf generated for the following a) Lap wound rotor b) Wave wound rotor. R A Field wdg -0000 + Load
