(Solved): Determine the current through resistor \( R_{3} \) in the circuit shown in the figure below. The b ...

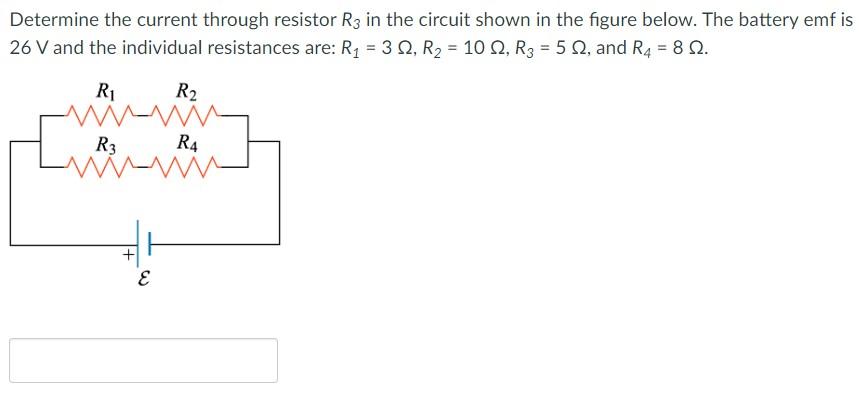

Determine the current through resistor \( R_{3} \) in the circuit shown in the figure below. The battery emf is \( 26 \mathrm{~V} \) and the individual resistances are: \( R_{1}=3 \Omega, R_{2}=10 \Omega, R_{3}=5 \Omega \), and \( R_{4}=8 \Omega \).
Expert Answer
R3 and R4 are in series : 5+8=13? b
