Design the voltage regulator circuit using the following circuit as reference, i.e., find the value of the resistor ( R ) to provide an output voltage of ( 2.4 mathrm{~V} ). Assume that the diodes available have ( 0.7- mathrm{V} ) drop at ( 1 mathrm{~mA} ) and that ( Delta mathrm{V}=0.1 mathrm{~V} ) per decade change in current. Wh solutionspile.com

Question

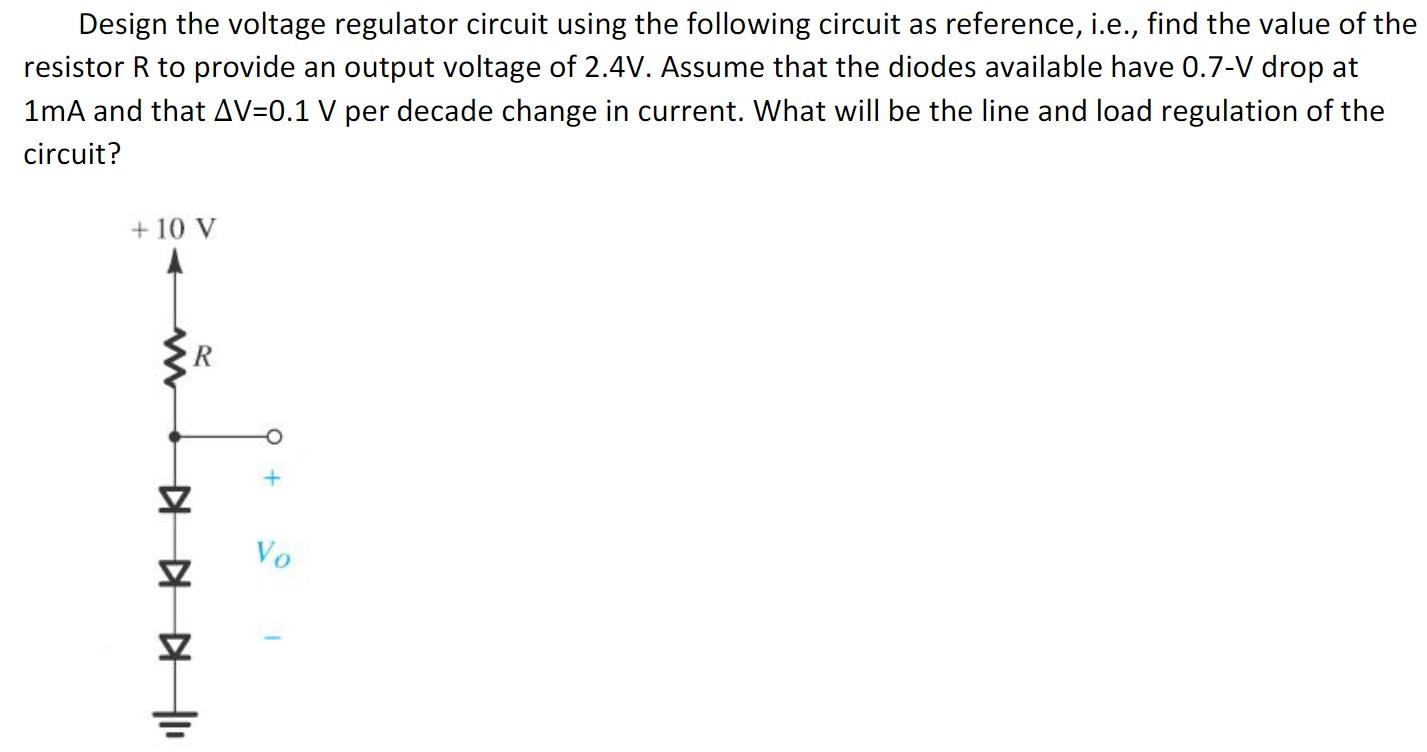

Design the voltage regulator circuit using the following circuit as reference, i.e., find the value of the resistor  ( R  ) to provide an output voltage of  ( 2.4  mathrm{~V}  ). Assume that the diodes available have  ( 0.7- mathrm{V}  ) drop at  ( 1  mathrm{~mA}  ) and that  (  Delta  mathrm{V}=0.1  mathrm{~V}  ) per decade change in current. What will be the line and load regulation of the circuit? solutionspile.com
