Design the following: (find the characteristic impedances of the four sections, and then find the physical length and width of each line)
$* Design a four-section binomial stripline matching transformer to match a $ 10 \Omega $ bad to a $ 50 \Omega $ line. * c$

Question

Design the following: (find the characteristic impedances of the four sections, and then find the physical length and width of each line)

$* Design a four-section binomial stripline matching transformer to match a $ 10 \Omega $ bad to a $ 50 \Omega $ line. * c$

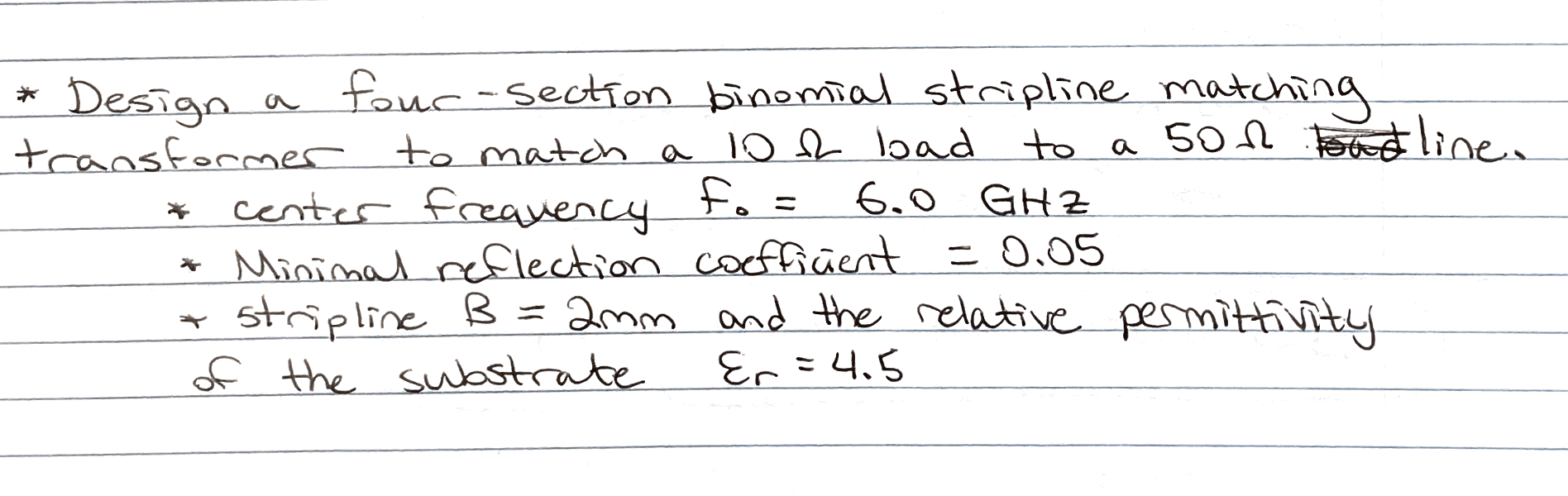

* Design a four-section binomial stripline matching transformer to match a

10?

bad to a

50?

line. * center frequency

f_{0} = 6.0 GHz

* Minimal reflection cofficient

= 0.05

* stripline

B = 2 mm

and the relative permittivity of the substrate

?_{r} = 4.5
