(Solved): Considering the stress concentration at point A in the figure, determine the maximum stresses in A, ...

Considering the stress concentration at point A in the figure, determine the
maximum stresses in A, B, C and D (the place of the cross-sectional area where the stress is
maximum.

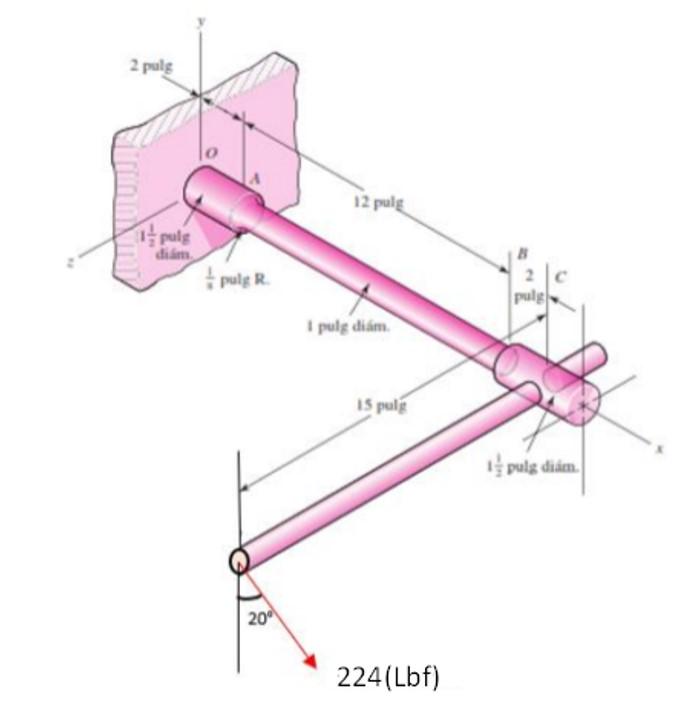

Fig 1

For the four different load studies in the figure , determine: a. The stresses at the different points of the cylinder A, B, C and D (at the point closest to the anchor), for each applied load.

fig 2. Points of the cross-sectional area where the stress must be studied, according to the applied load

The stresses at the different points of the cylinder A, B, C and D (at the point closest
to the anchor), for each applied load.
