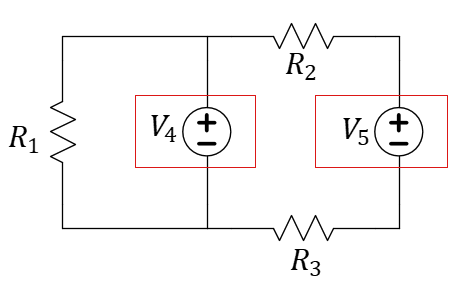

Consider the two sub-circuits defined by the two red boxes. Determine if they are in series or parallel configuration or, perhaps, neither or both or impossible to determine.
(a) Series
(b) Parallel
(c) Neither
(d) Both
(e) Impossible to determine
Expert Answer
We know that for series connection current across both the sub circuit must be same. Frim the above f
