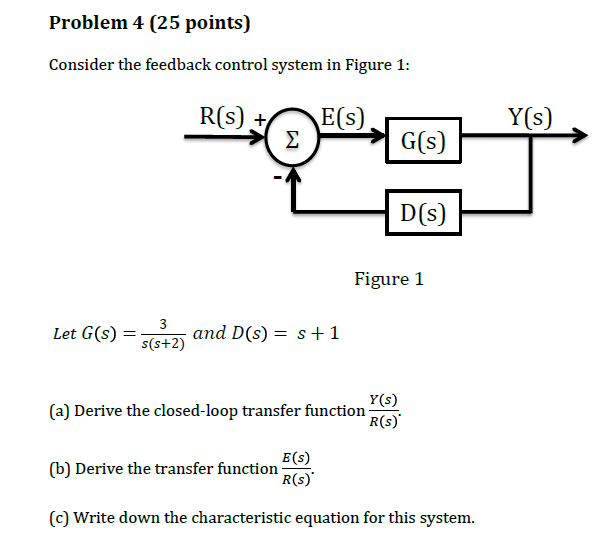

Consider the feedback control system in Figure 1 : Figure 1 Let ( G(s)= frac{3}{s(s+2)} ) and ( D(s)=s+1 ) (a) Derive the closed-loop transfer function ( frac{Y(s)}{R(s)} ). (b) Derive the transfer function ( frac{E(s)}{R(s)} ). (c) Write down the characteristic equation for this system. solutionspile.com

Question

Consider the feedback control system in Figure 1 : Figure 1 Let  ( G(s)= frac{3}{s(s+2)}  ) and  ( D(s)=s+1  ) (a) Derive the closed-loop transfer function  (  frac{Y(s)}{R(s)}  ). (b) Derive the transfer function  (  frac{E(s)}{R(s)}  ). (c) Write down the characteristic equation for this system. solutionspile.com

Accepted Answer

Expert Answer to -   Consider the feedback control system in Figure 1 : Figure 1 Let  ( G(s)= frac{3}{s(s+2)}  ) and  (

Answer

Solution for -   Consider the feedback control system in Figure 1 : Figure 1 Let  ( G(s)= frac{3}{s(s+2)}  ) and  (

Answer

This an additional answer to -   Consider the feedback control system in Figure 1 : Figure 1 Let  ( G(s)= frac{3}{s(s+2)}  ) and  (
