(Solved): Consider a steam power plant that operates on the ideal regenerative Rankine cycle with a closed fe ...

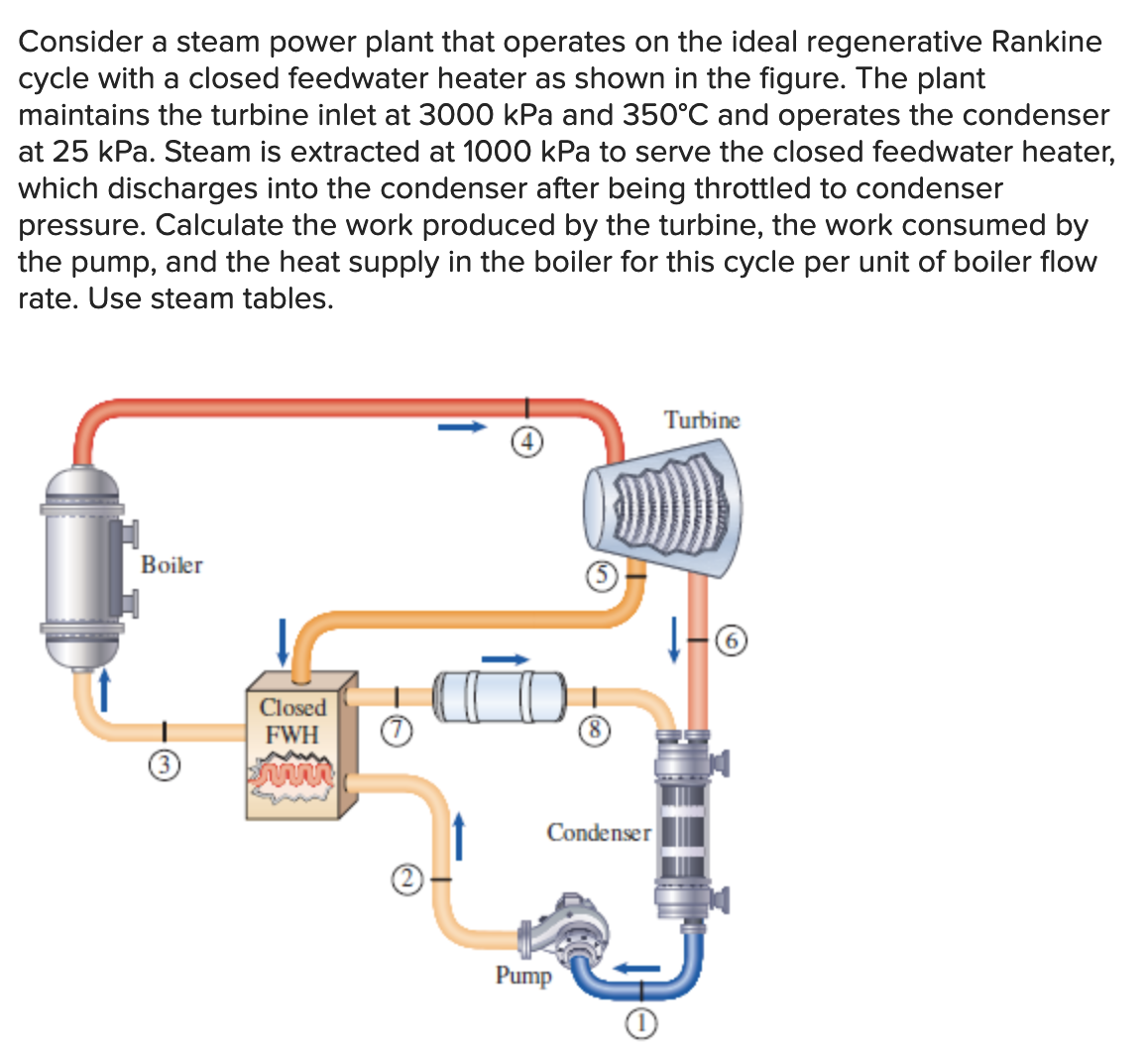

Consider a steam power plant that operates on the ideal regenerative Rankine cycle with a closed feedwater heater as shown in the figure. The plant maintains the turbine inlet at $3000\mathrm{kPa}$ and $350^{?}\mathrm{C}$ and operates the condenser at $25\mathrm{kPa}$. Steam is extracted at $1000\mathrm{kPa}$ to serve the closed feedwater heater, which discharges into the condenser after being throttled to condenser pressure. Calculate the work produced by the turbine, the work consumed by the pump, and the heat supply in the boiler for this cycle per unit of boiler flow rate. Use steam tables.
