(Solved): - Compute average field angle for each angle point - Compute angle error from sum of average field ...

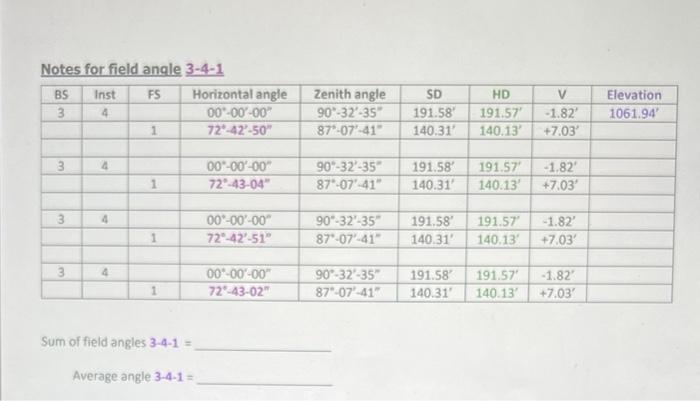

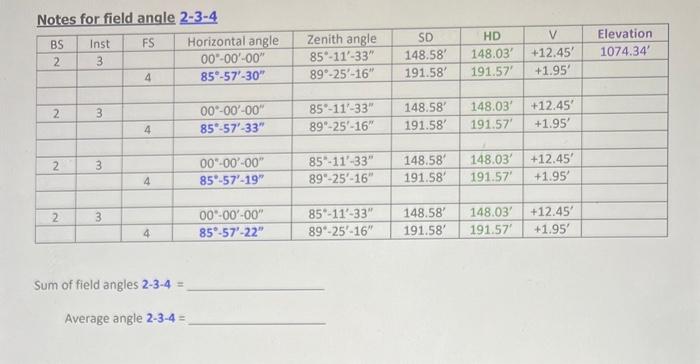

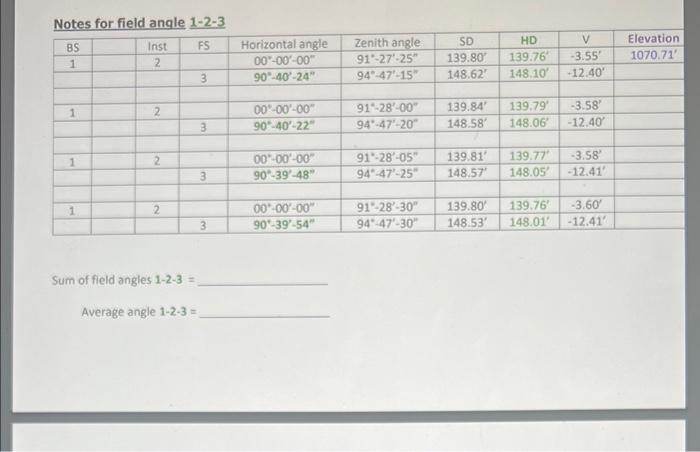

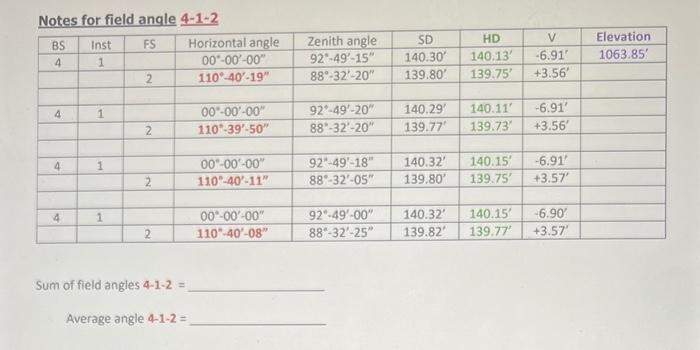

- Compute average field angle for each angle point - Compute angle error from sum of average field angles - Balance angle error by Table Method - Compute Forward Azimuths (FAZ) and Forward Bearings (FB) of all lines. - When computing Forward Azimuths (FAZs): 1. Convert given forward bearing (FB) to its equivalent forward azimuth (FAZ) 2. Convert the FAZ to its equivalent BAZ 3. Add the corrected angle ahead. For this lab problem the arrow is pointing at corrected angle ahead which is corrected angle 3-4-1 4. This will give you the FAZ for line \( 4-1 \) 5. These steps then repeat until you end up back with the given forward azimuth along line 3-4 for this problem. 6. Once you have computed the FAZs for each line, (checking back into the beginning line), you can go back and convert each FAZ to its equivalent Forward Bearing (FB). If you have a mistake you will not end up with the same FAZ for Line 3-4 that you began with. Natene for finld annle 4-1 -2 Sum of field angles 4-1-2 = Average angle 4-1-2 = Sum of field angles 1-2-3 = Average angle 1-2-3 = Notac for fiald anole 2-3-4 Sum of field angles 2-3-4 = Average angle 2-3-4 = Notes for field anale 3-4-1 Sum of field angles 3-4-1 = Average angle 3-4-1 =
