(Solved): Calculate the value of resistors needed to make the wye-circuit (Y-circuit) equivalent to the given ...



student submitted image, transcription available belowstudent submitted image, transcription available below

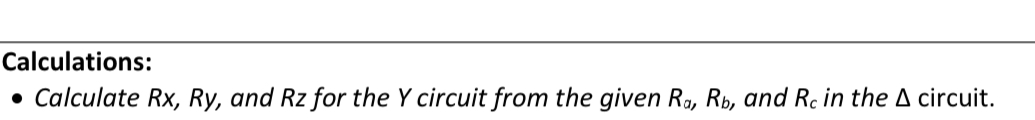

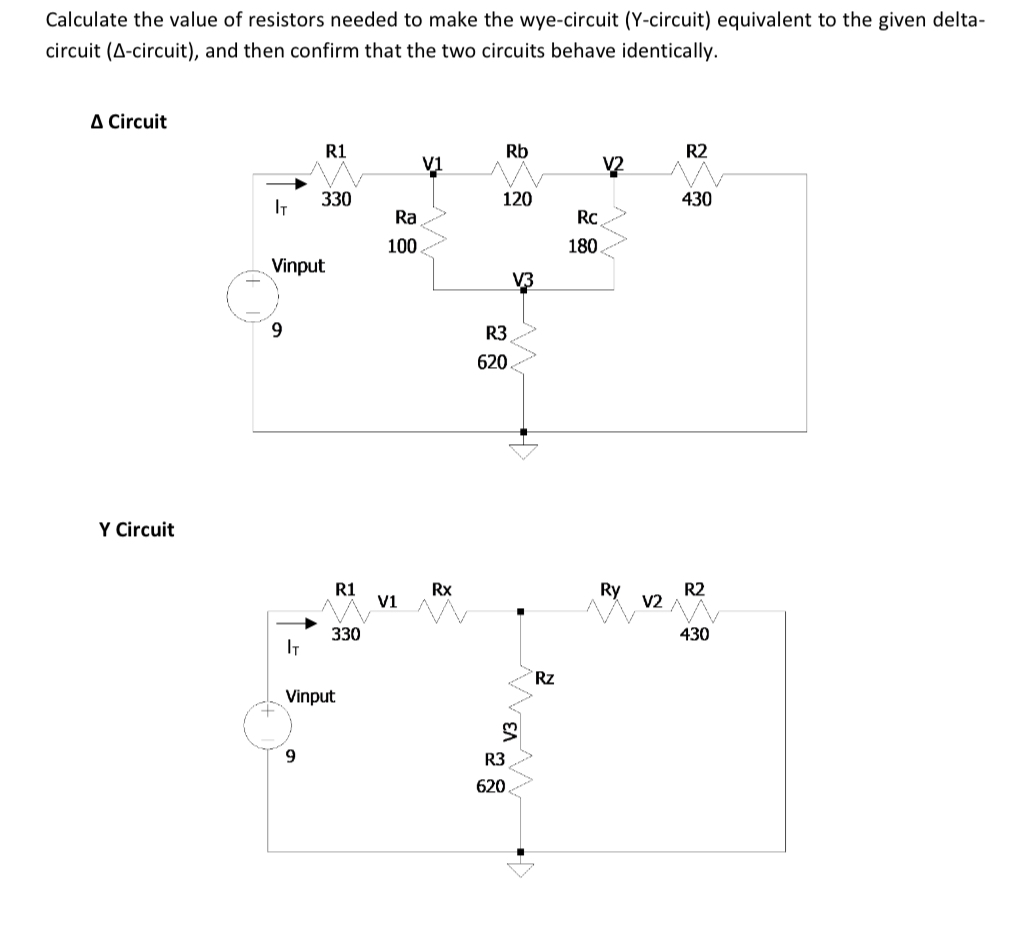

Calculate the value of resistors needed to make the wye-circuit (Y-circuit) equivalent to the given deltacircuit ( -circuit), and then confirm that the two circuits behave identically. Circuit Y Circuit Calculations: - Calculate , and for the circuit from the given , and in the circuit.
