(Solved): (c) Mixture of acetone (component 1) and chloroform (component 2) will form a maximum boiling azeot ...

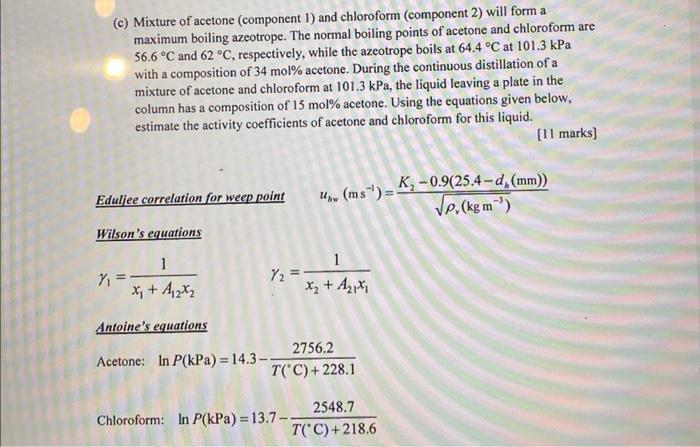

(c) Mixture of acetone (component 1) and chloroform (component 2) will form a maximum boiling azeotrope. The normal boiling points of acetone and chloroform are \( 56.6^{\circ} \mathrm{C} \) and \( 62^{\circ} \mathrm{C} \), respectively, while the azeotrope boils at \( 64.4^{\circ} \mathrm{C} \) at \( 101.3 \mathrm{kPa} \) with a composition of \( 34 \mathrm{~mol} \% \) acetone. During the continuous distillation of a mixture of acetone and chloroform at \( 101.3 \mathrm{kPa} \), the liquid leaving a plate in the column has a composition of \( 15 \mathrm{~mol} \% \) acetone. Using the equations given below, estimate the activity coefficients of acetone and chloroform for this liquid. [11 marks] Eduliee correlation for weep point \( \quad u_{h w}\left(\mathrm{~m} \mathrm{~s}^{-1}\right)=\frac{K_{2}-0.9\left(25.4-d_{h}(\mathrm{~mm})\right)}{\sqrt{\rho_{v}\left(\mathrm{~kg} \mathrm{~m}^{-3}\right)}} \) Wilson's equations \[ \gamma_{1}=\frac{1}{x_{1}+A_{12} x_{2}} \quad \gamma_{2}=\frac{1}{x_{2}+A_{21} x_{1}} \] Antoine's equations Acetone: \( \ln P(\mathrm{kPa})=14.3-\frac{2756.2}{T\left({ }^{\circ} \mathrm{C}\right)+228.1} \) Chloroform: \( \ln P(\mathrm{kPa})=13.7-\frac{2548.7}{T\left({ }^{*} \mathrm{C}\right)+218.6} \)
