(Solved): Below is a distillation column and associated reboiler, condenser, and reflux drum. The operating p ...

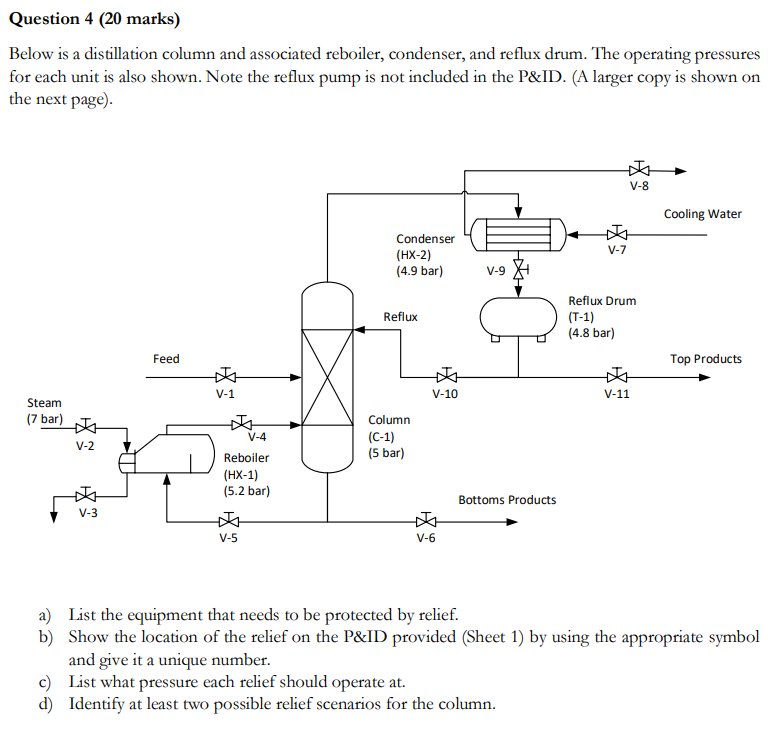

Below is a distillation column and associated reboiler, condenser, and reflux drum. The operating pressures for each unit is also shown. Note the reflux pump is not included in the P\&ID. (A larger copy is shown on the next page). a) List the equipment that needs to be protected by relief. b) Show the location of the relief on the P\&ID provided (Sheet 1) by using the appropriate symbol and give it a unique number. c) List what pressure each relief should operate at. d) Identify at least two possible relief scenarios for the column.
