(Solved): b) Fill in the state table c) Draw a state transition diagram for this sequential machine and tim ...

b) Fill in the state table

c) Draw a state transition diagram for this sequential machine and timing diagram with CLK, Z0, Z1, and Z2.

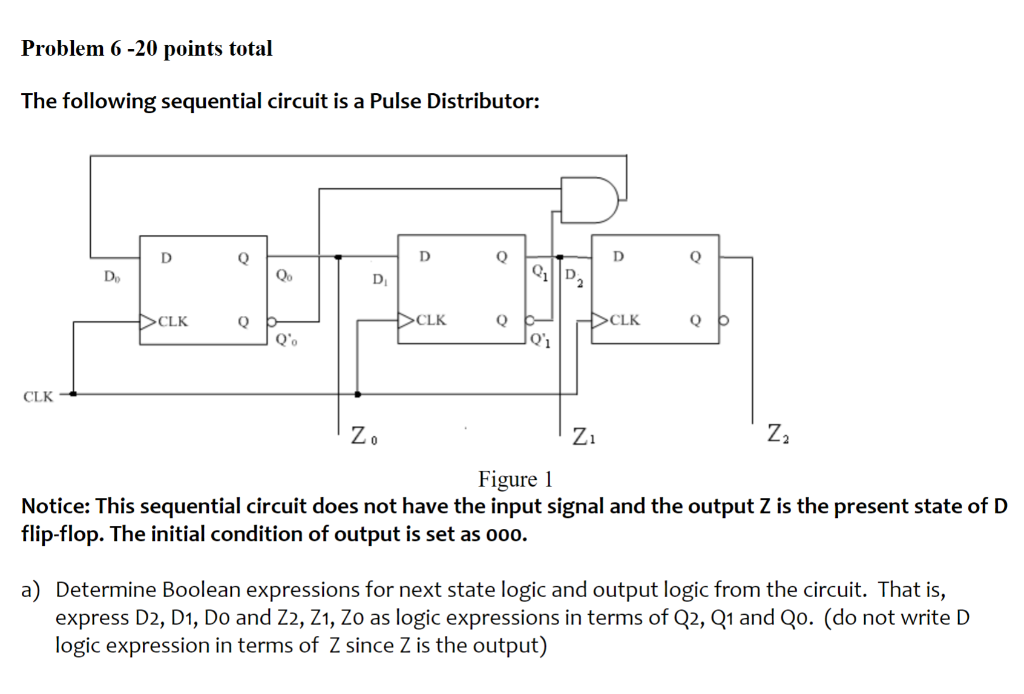

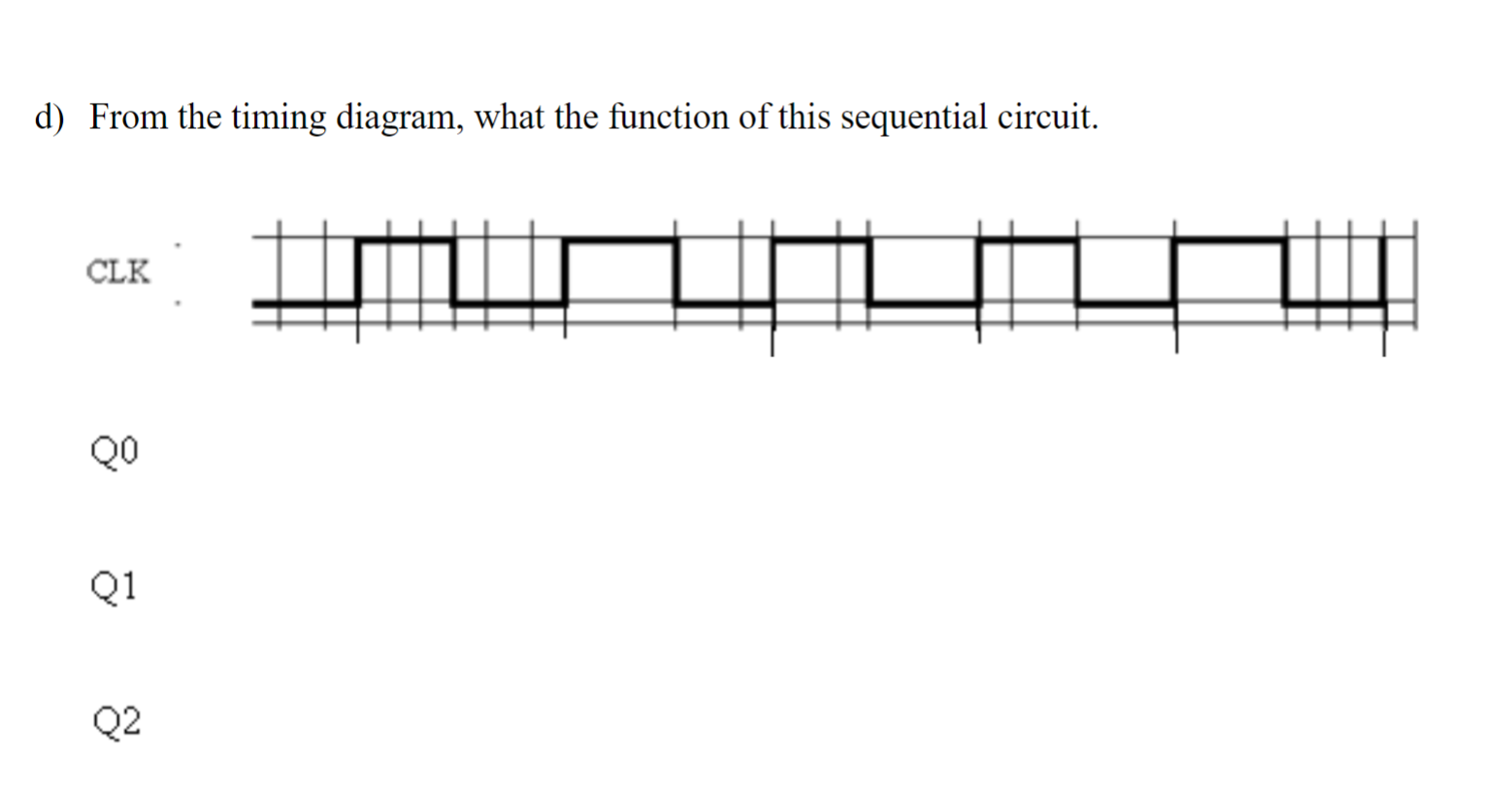

The following sequential circuit is a Pulse Distributor: Figure 1 Notice: This sequential circuit does not have the input signal and the output \( Z \) is the present state of \( D \) flip-flop. The initial condition of output is set as 000 . a) Determine Boolean expressions for next state logic and output logic from the circuit. That is, express D2, D1, Do and Z2, Z1, Zo as logic expressions in terms of Q2, Q1 and Qo. (do not write D logic expression in terms of \( Z \) since \( Z \) is the output) d) From the timing diagram, what the function of this sequential circuit.
