(Solved): Assume that water flowing past the equilateral triangular bar shown in the figure below produces th ...

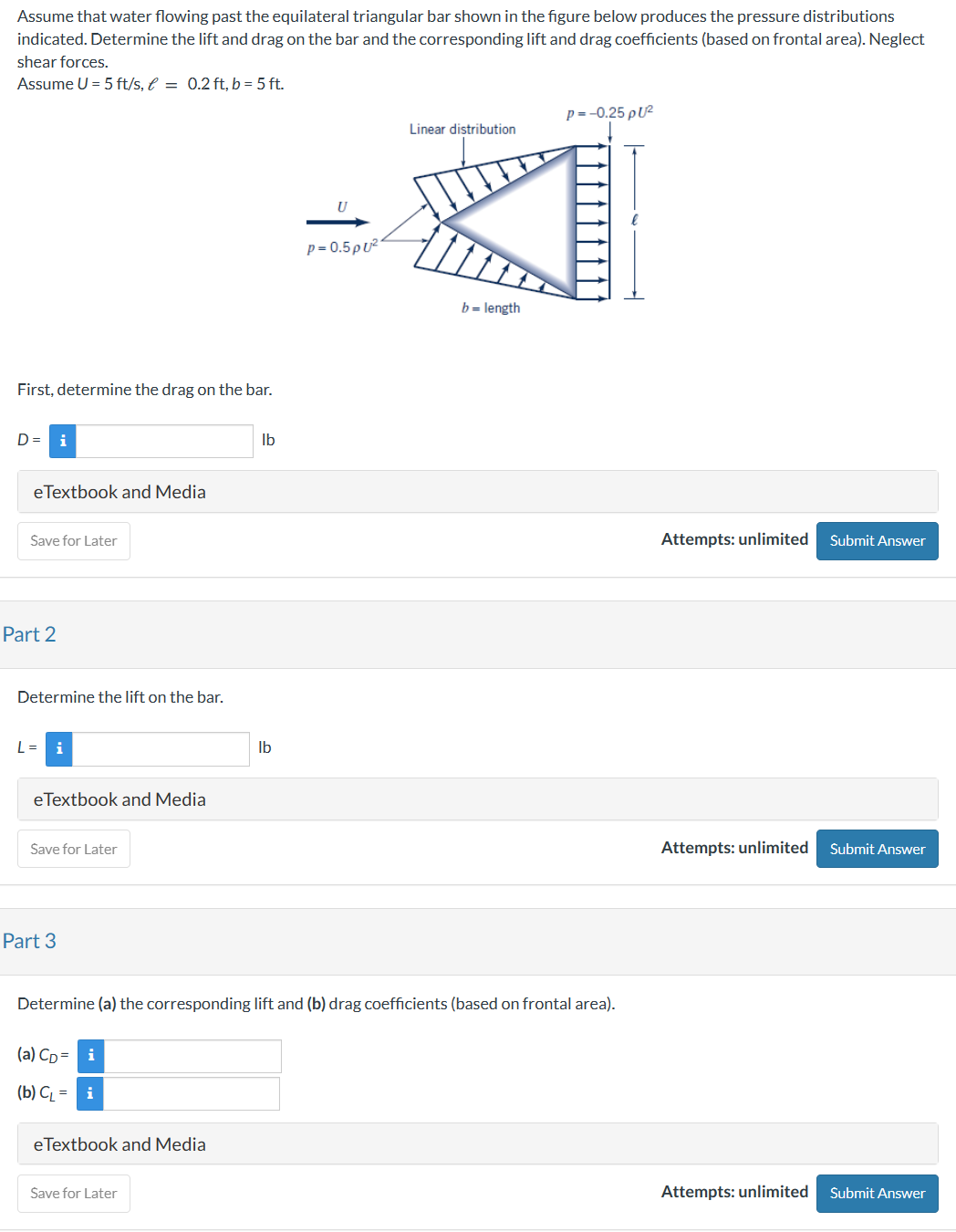

Assume that water flowing past the equilateral triangular bar shown in the figure below produces the pressure distributions indicated. Determine the lift and drag on the bar and the corresponding lift and drag coefficients (based on frontal area). Neglect shear forces. Assume $U=5\mathrm{ft}/\mathrm{s},?=0.2\mathrm{ft},b=5\mathrm{ft}$. First, determine the drag on the bar. $D=$ Ib eTextbook and Media Attempts: unlimited Part 2 Determine the lift on the bar. $L=$ lb eTextbook and Media Attempts: unlimited Part 3 Determine (a) the corresponding lift and (b) drag coefficients (based on frontal area).
