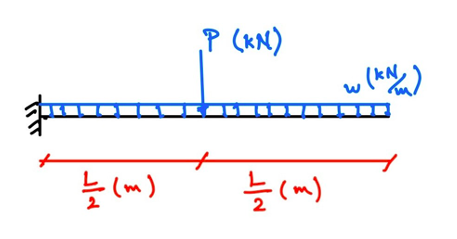

Apply finite element method formulation for beams, and use only 2 elements of equal lengths to:

1. Find the deflection at the mid-length of the beam (in mm),
2. Find the reactions: Moment (kN.m) and force (kN) at the left support.

w = 2

P = 1kN

L = 10m

The beam is fixed at the left end, and free at the right end. Use steel beam with, E=210,000 MPa, and I=3.54 ×10⁷ mm⁴

^{Use correct units for upvote}
