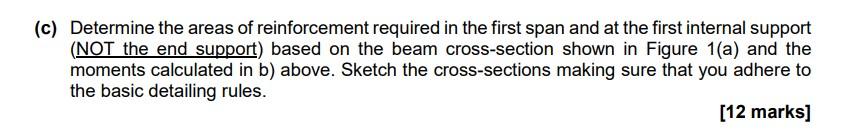

Answer c) Determine the areas of reinforcement required in the first span and at the first internal support (NOT the end support) based on the beam cross-section shown in Figure 1(a) and the moments calculated in b) above. Sketch the cross-sections making sure that you adhere to the basic detailing rules.

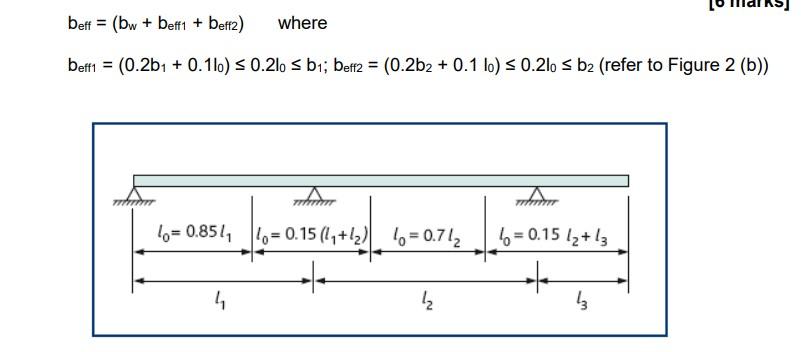

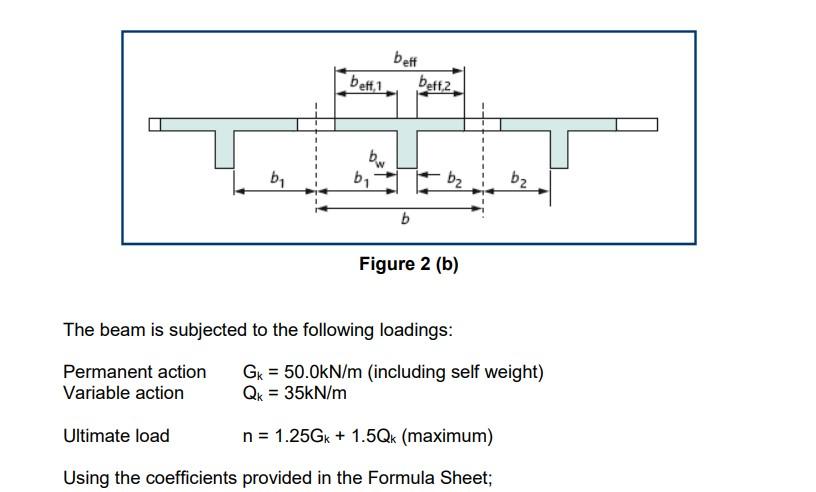

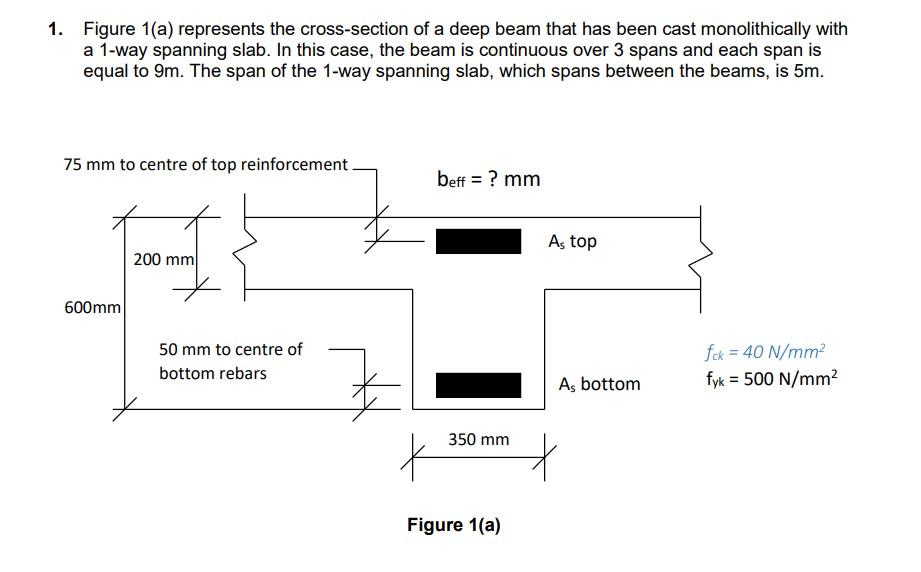

1. Figure 1(a) represents the cross-section of a deep beam that has been cast monolithically with a 1-way spanning slab. In this case, the beam is continuous over 3 spans and each span is equal to $$9\mathrm{m}$$. The span of the 1-way spanning slab, which spans between the beams, is $$5\mathrm{m}$$. $$b_{\text{eff }}=\left(b_w+b_{\text{eff1 }1}+b_{\text{eff2 }}\right)$$ where $$b_{\text{eff1 }}=\left(0.2b_1+0.1l_0\right)?0.2l_0?b_1;b_{\text{eff2 }}=\left(0.2b_2+0.1l_0\right)?0.2l_0?b_2($$ refer to Figure $$2(b))$$ The beam is subjected to the following loadings: Permanent action $${\mathrm{G}}_{\mathrm{k}}=50.0\mathrm{kN}/\mathrm{m}$$ (including self weight) Variable action $$Q_k=35\mathrm{kN}/\mathrm{m}$$ Ultimate load $$\mathrm{n}=1.25{\mathrm{G}}_{\mathrm{k}}+1.5{\mathrm{Q}}_{\mathrm{k}}$$ (maximum) Using the coefficients provided in the Formula Sheet; (c) Determine the areas of reinforcement required in the first span and at the first internal support (NOT the end support) based on the beam cross-section shown in Figure 1(a) and the moments calculated in b) above. Sketch the cross-sections making sure that you adhere to the basic detailing rules.
