(Solved): answer asap and i will rate For the underdamped circuit shown in Fig. P7.110, determine the voltage ...

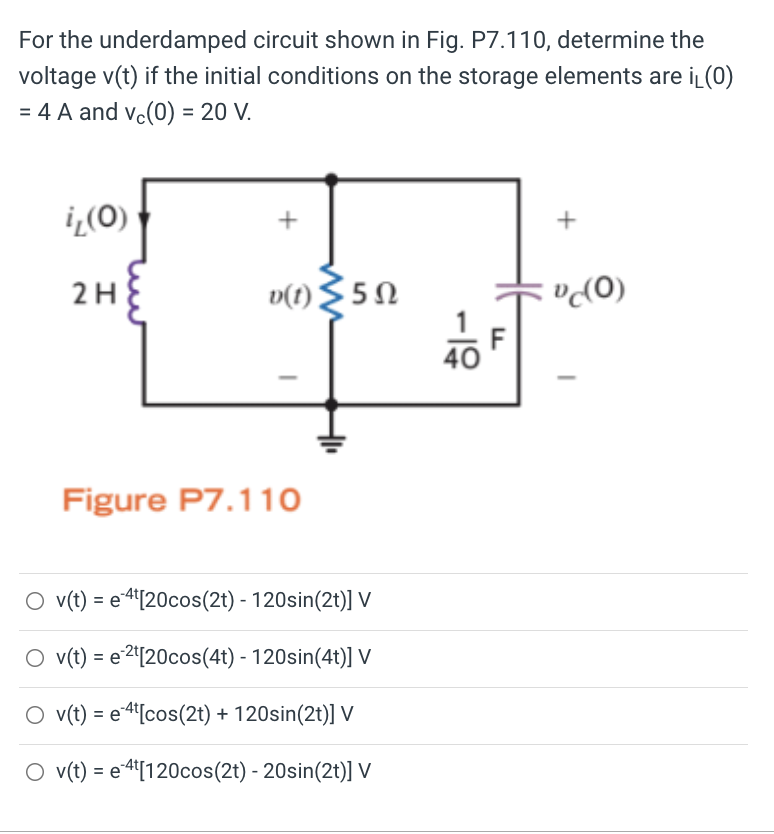

For the underdamped circuit shown in Fig. P7.110, determine the voltage v(t) if the initial conditions on the storage elements are iL(0) = 4 A and vc(0) = 20 V. i?(0) + + 2 H v(1) ?50 5? DC(0) Figure P7.110 O v(t) = e 4¹[20cos(2t) - 120sin(2t)] V O v(t) = e ²t [20cos(4t) - 120sin(4t)] V Ov(t) = e4t[cos(2t) + 120sin(2t)] V Ov(t) = e4¹[120cos(2t) - 20sin(2t)] V 40
