(Solved): Analyse the following pin-jointed space frame structure, including member forces and reactions at ...

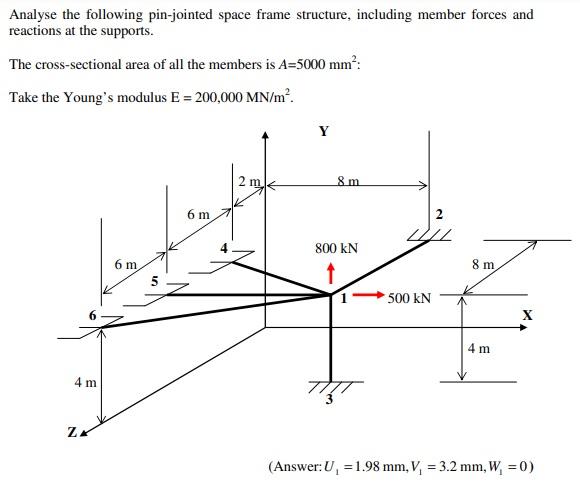

Analyse the following pin-jointed space frame structure, including member forces and reactions at the supports. The cross-sectional area of all the members is A=5000 mm²: Take the Young's modulus E = 200,000 MN/m². Y m 6 m 8 m *500 KN 4 m (Answer: U? = 1.98 mm, V? = 3.2 mm, W, = 0) 6 4 m ZK 6 m N 8m 800 KN X
