(Solved):

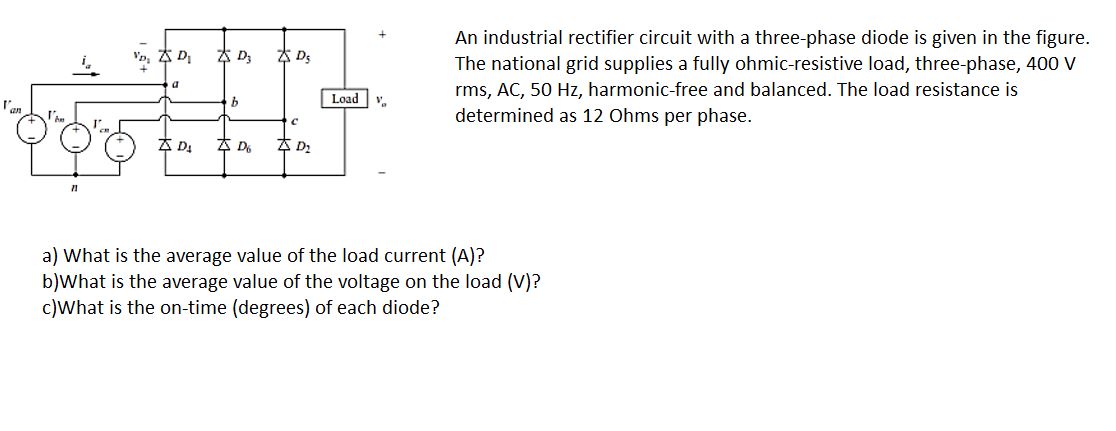

An industrial rectifier circuit with a three-phase diode is given in the figure. The national grid ...
An industrial rectifier circuit with a three-phase diode is given in the figure. The national grid supplies a fully ohmic-resistive load, three-phase, 400V rms, AC,50Hz, harmonic-free and balanced. The load resistance is determined as 12 Ohms per phase. a) What is the average value of the load current (A)? b) What is the average value of the voltage on the load (V)? c)What is the on-time (degrees) of each diode?
