(Solved): An ideal Rankine cycle incorporates a reheat process. The cycle has a boiler pressure of 5.0 MPa, t ...

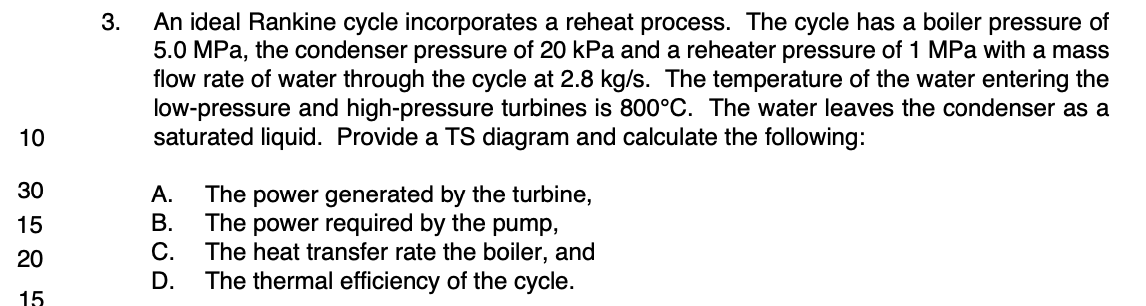

An ideal Rankine cycle incorporates a reheat process. The cycle has a boiler pressure of 5.0 MPa, the condenser pressure of $20\mathrm{kPa}$ and a reheater pressure of $1\mathrm{MPa}$ with a mass flow rate of water through the cycle at $2.8\mathrm{kg}/\mathrm{s}$. The temperature of the water entering the low-pressure and high-pressure turbines is $800^{?}\mathrm{C}$. The water leaves the condenser as a saturated liquid. Provide a TS diagram and calculate the following: A. The power generated by the turbine, B. The power required by the pump, C. The heat transfer rate the boiler, and D. The thermal efficiency of the cycle.
