(Solved): A wooden beam is fabricated from one \( 2 \times 10 \) and two \( 2 \times 6 \) pieces of dimension ...

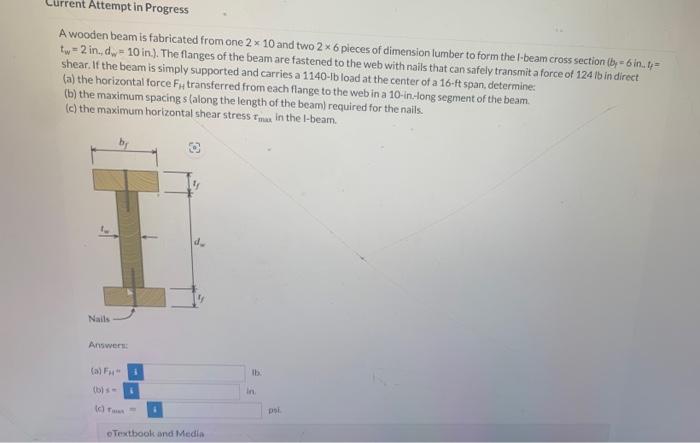

A wooden beam is fabricated from one \( 2 \times 10 \) and two \( 2 \times 6 \) pieces of dimension lumber to form the -beam cross section \( (b y=6 \) in.. \( t= \) \( t_{w}=2 \) in, \( d_{w}=10 \) in.). The flanges of the beam are fastened to the web with nails that can safely transmit a force of 124116 in direct shear. If the beam is simply supported and carries a 1140-Jb load at the center of a 16-ft span, determine: (a) the horizontal force \( F_{H} \) transferred from each flange to the web in a 10 -in tong segment of the beam. (c) the maximum horizontal shear stress \( \tau_{\max } \) in the I-beam. Answert: (a) \( \left.F_{14}{ }^{*}\right) \) (to) \( s= \) lb. \( (c) \operatorname{ranst}= \) p?? eTextbook and Media
