(Solved): A wood beam carries the loading shown in the figure. calculate the magnitude of the bending stress ( ...

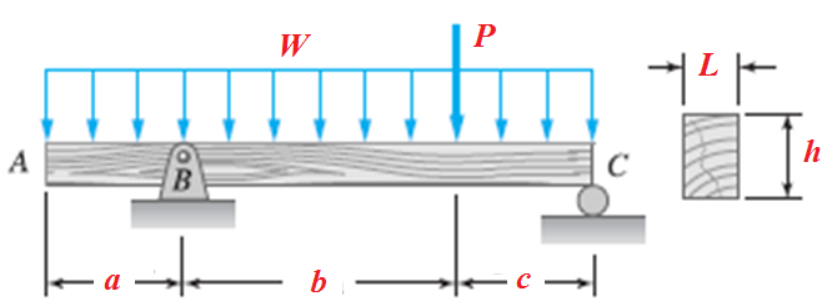

A wood beam carries the loading shown in the figure. calculate the magnitude of the bending stress (in Pa) at a point 23 mm from the top of the beam on a section 3.15 m from A if P = 4600 N, W = 1890 N/m, a = 0.81 m, b = 1.79 m, c = 1.11 m, L = 61 mm and h = 164 mm. Round off the final answer to two decimal places.
A ? W - b P cl C ?? h
