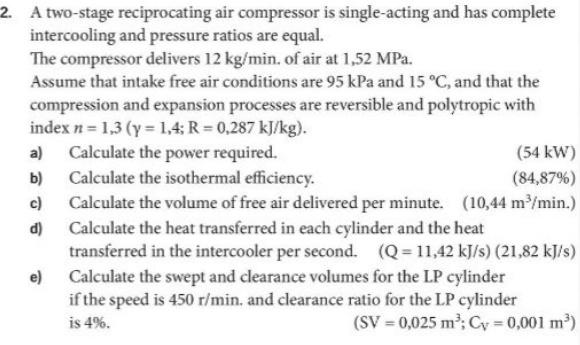

A two-stage reciprocating air compressor is single-acting and has complete intercooling and pressure ratios are equal. The compressor delivers 12kg/min. of air at 1,52MPa. Assume that intake free air conditions are 95kPa and 15?C, and that the compression and expansion processes are reversible and polytropic with index n=1,3(?=1,4;R=0,287kJ/kg). a) Calculate the power required. (54kW) b) Calculate the isothermal efficiency. (84,87%) c) Calculate the volume of free air delivered per minute. (10,44m3/min.) d) Calculate the heat transferred in each cylinder and the heat transferred in the intercooler per second. (Q=11,42kJ/s)(21,82kJ/s) e) Calculate the swept and clearance volumes for the L.P cylinder if the speed is 450r/min. and clearance ratio for the LP cylinder is 4%. (SV=0,025m3;CV?=0,001m3)
