A step change in the steam pressure to a heat exchanger is made from 20 to 24 ...
???????

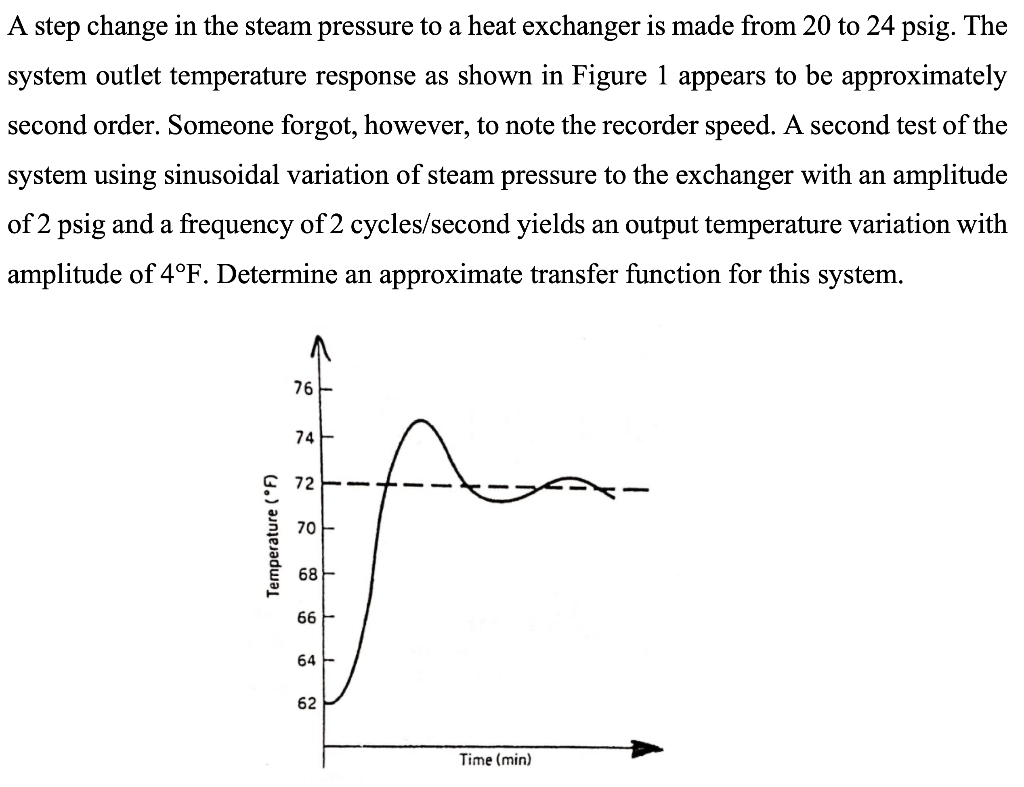

A step change in the steam pressure to a heat exchanger is made from 20 to 24psig. The system outlet temperature response as shown in Figure 1 appears to be approximately second order. Someone forgot, however, to note the recorder speed. A second test of the system using sinusoidal variation of steam pressure to the exchanger with an amplitude of 2 psig and a frequency of 2 cycles/second yields an output temperature variation with amplitude of 4?F. Determine an approximate transfer function for this system.
