(Solved): A single-phase half-wave ac voltage controller as shown in Figure has a load resistance R = 5092, ...

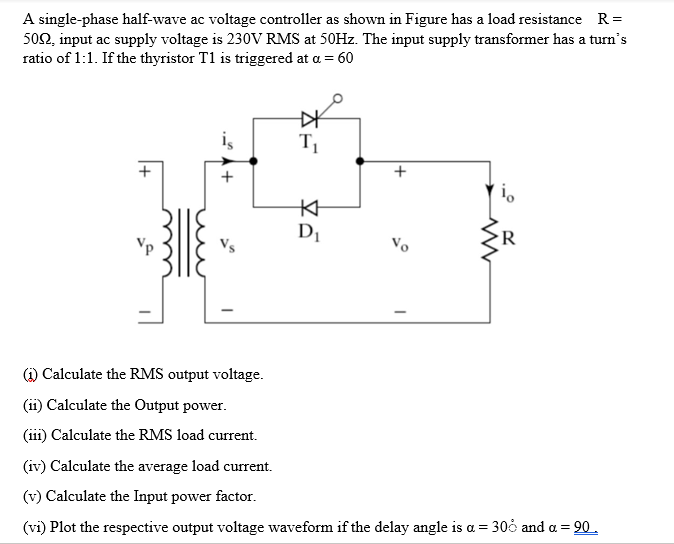

A single-phase half-wave ac voltage controller as shown in Figure has a load resistance R = 5092, input ac supply voltage is 230V RMS at 50Hz. The input supply transformer has a turn's ratio of 1:1. If the thyristor T1 is triggered at a = 60 T? + (1) Calculate the RMS output voltage. (ii) Calculate the Output power. (iii) Calculate the RMS load current. (iv) Calculate the average load current. (v) Calculate the Input power factor. (vi) Plot the respective output voltage waveform if the delay angle is a = 30 and a = 90. S + K D? www R
