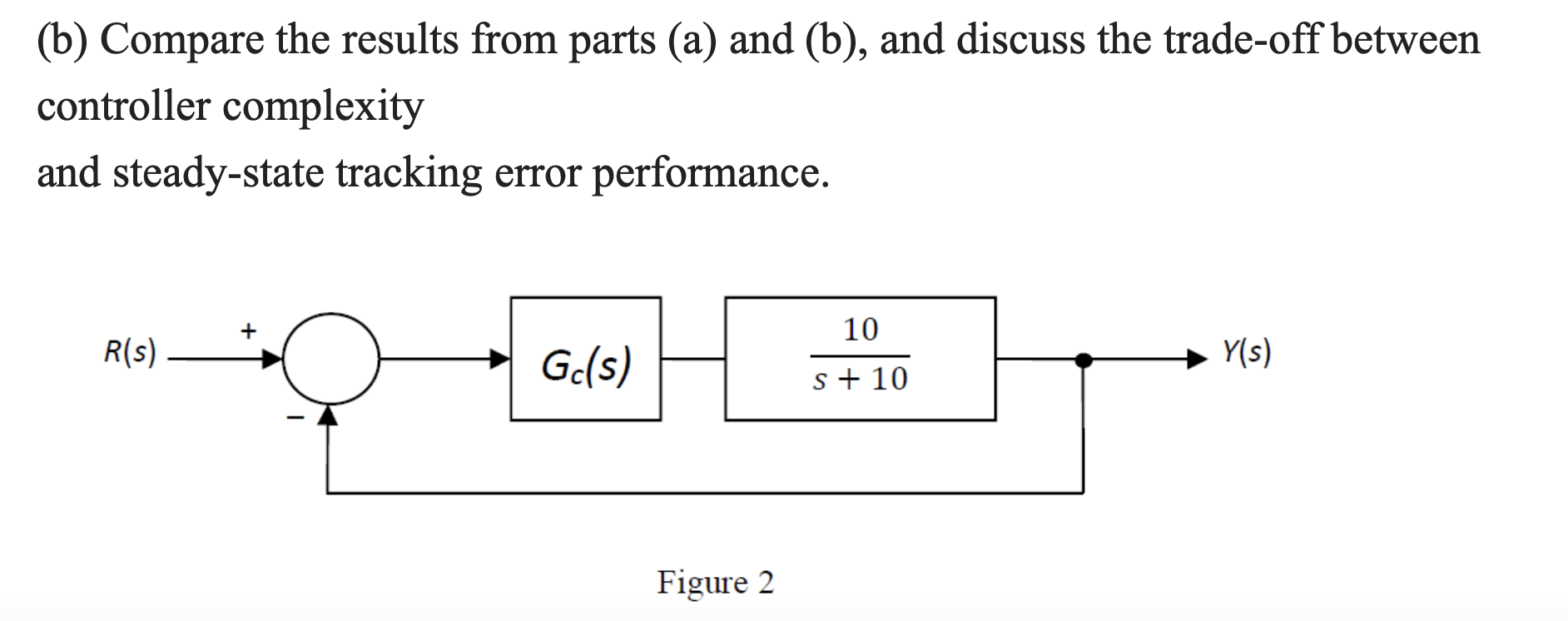

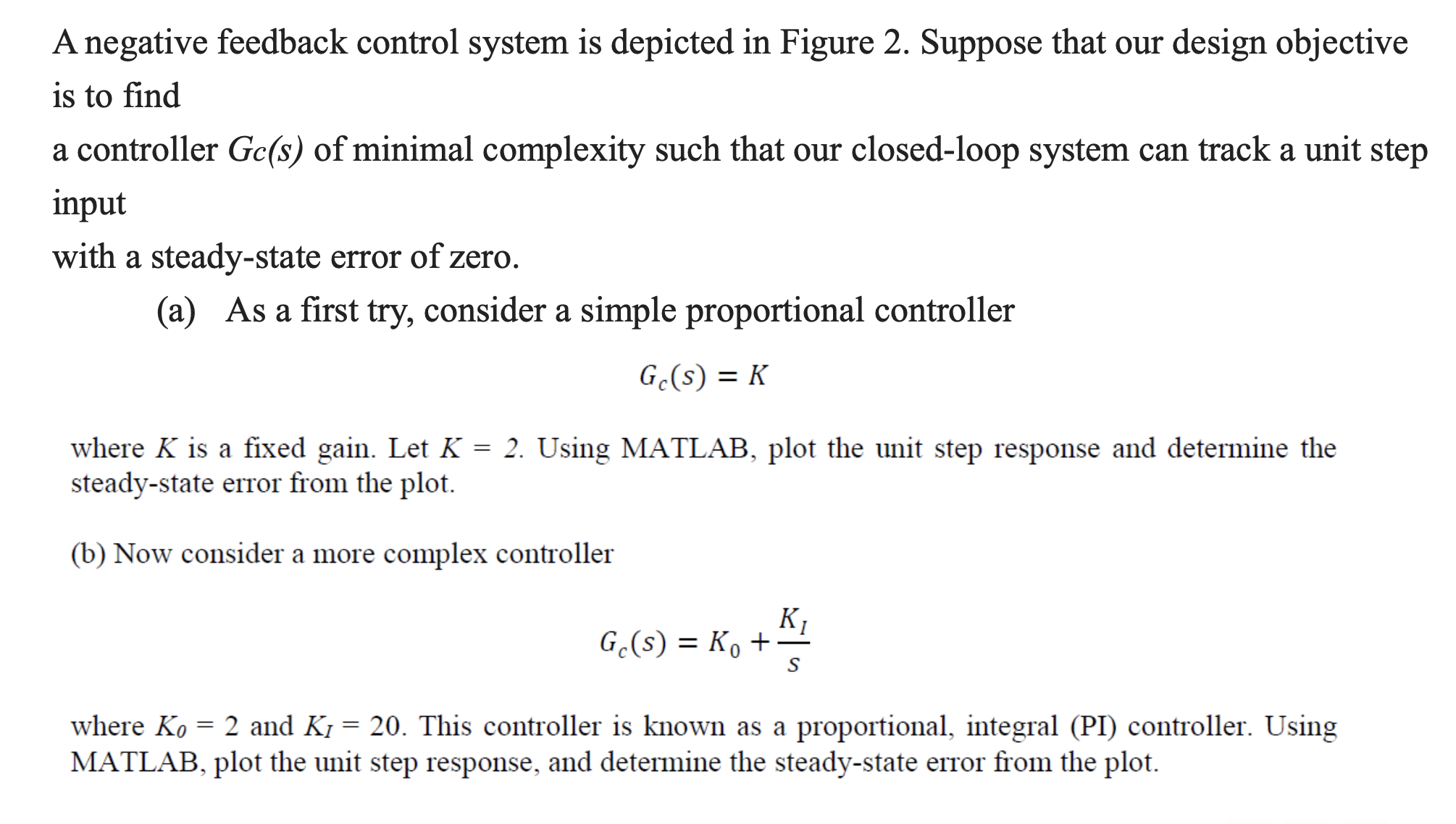

A negative feedback control system is depicted in Figure 2. Suppose that our design objective is to find a controller of minimal complexity such that our closed-loop system can track a unit step input with a steady-state error of zero. (a) As a first try, consider a simple proportional controller where is a fixed gain. Let . Using MATLAB, plot the unit step response and determine the steady-state error from the plot. (b) Now consider a more complex controller where and . This controller is known as a proportional, integral (PI) controller. Using MATLAB, plot the unit step response, and determine the steady-state error from the plot. (b) Compare the results from parts (a) and (b), and discuss the trade-off between controller complexity and steady-state tracking error performance. Figure 2


We have an Answer from Expert

View Expert Answer

Expert Answer



a) The controller transfer function is


The transfer function of the plant is
