(Solved): A distributed load is applied to beam AB, shown in the diagram below. The bea ...

???????

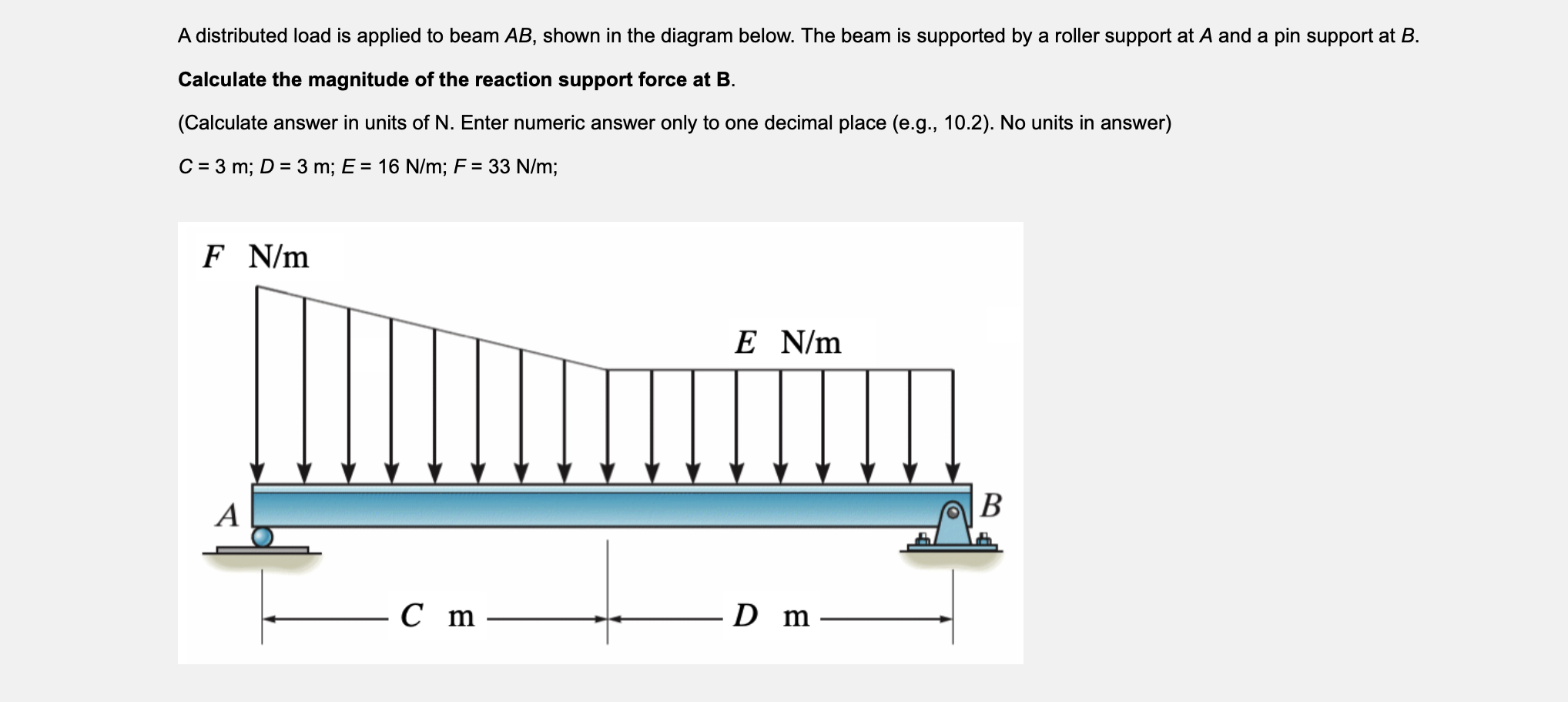

A distributed load is applied to beam $$AB$$, shown in the diagram below. The beam is supported by a roller support at $$A$$ and a pin support at $$B$$. Calculate the magnitude of the reaction support force at $$B$$. (Calculate answer in units of N. Enter numeric answer only to one decimal place (e.g., 10.2). No units in answer) $$C=3\mathrm{m};D=3\mathrm{m};E=16\mathrm{N}/\mathrm{m};F=33\mathrm{N}/\mathrm{m}$$ A distributed load is applied to beam $$AB$$, shown in the diagram below. For an equivalent resultant force that replaces the distributed load, calculate the distance from $$B$$ that the equivalent resultant force should be located on the beam. (Calculate answer in units of $$\mathrm{m}$$. Enter numeric answer only to one decimal place (e.g., 10.2). No units in answer) $$C=3\mathrm{m};D=4\mathrm{m};E=17\mathrm{N}/\mathrm{m};F=33\mathrm{N}/\mathrm{m}$$
