(Solved): (a) Assume the op-amp is ideal, derive the mathematical formulation of output voltage, VOUT, in th ...

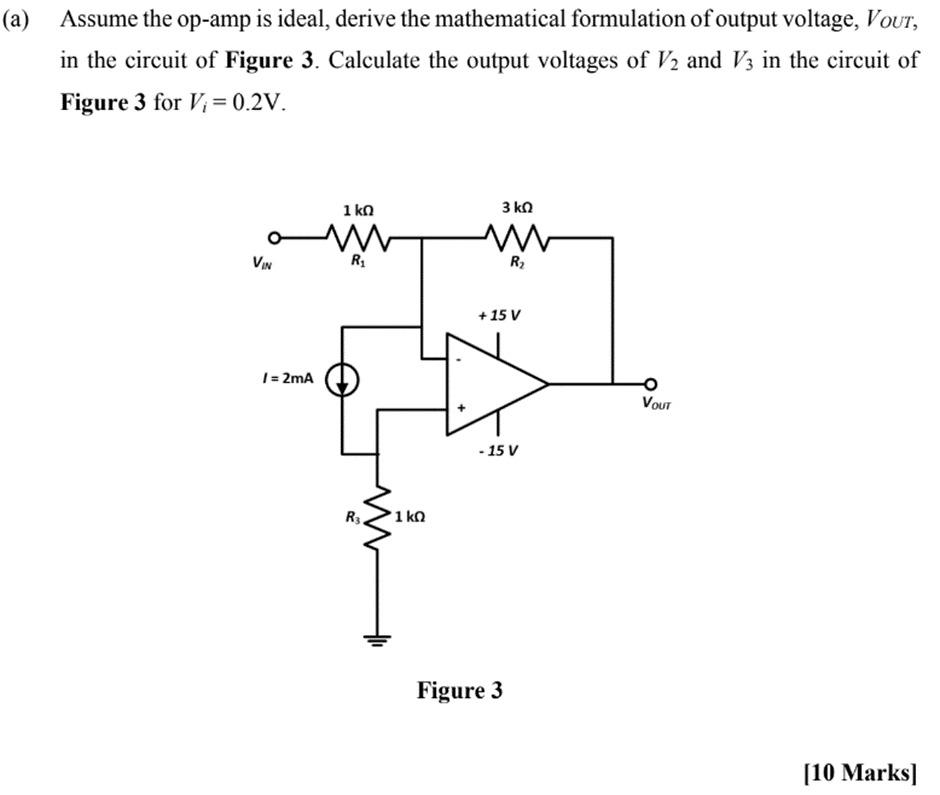

(a) Assume the op-amp is ideal, derive the mathematical formulation of output voltage, VOUT, in the circuit of Figure 3. Calculate the output voltages of V2 and V3 in the circuit of Figure 3 for V? = 0.2V. VIN /= 2mA 1 ?? ww R? R3 1 kn 3 ?? M R? + 15 V - 15 V Figure 3 VOUT [10 Marks] (b) Calculate the output voltages of V/2 and V3 in the circuit of Figure 4 for V? = 0.2V. Vi R? www 20kQ | +15V |-15V R4 >10kQ Figure 4 R? ww 200kQ |+15V -15V +15V -15V R3 ww 200k? V? V3 [10 Marks]
