(Solved): 7. The two-stage CMOS op amp shown is fabricated in a \( 0.18-\mu \mathrm{m} \) technology having ...

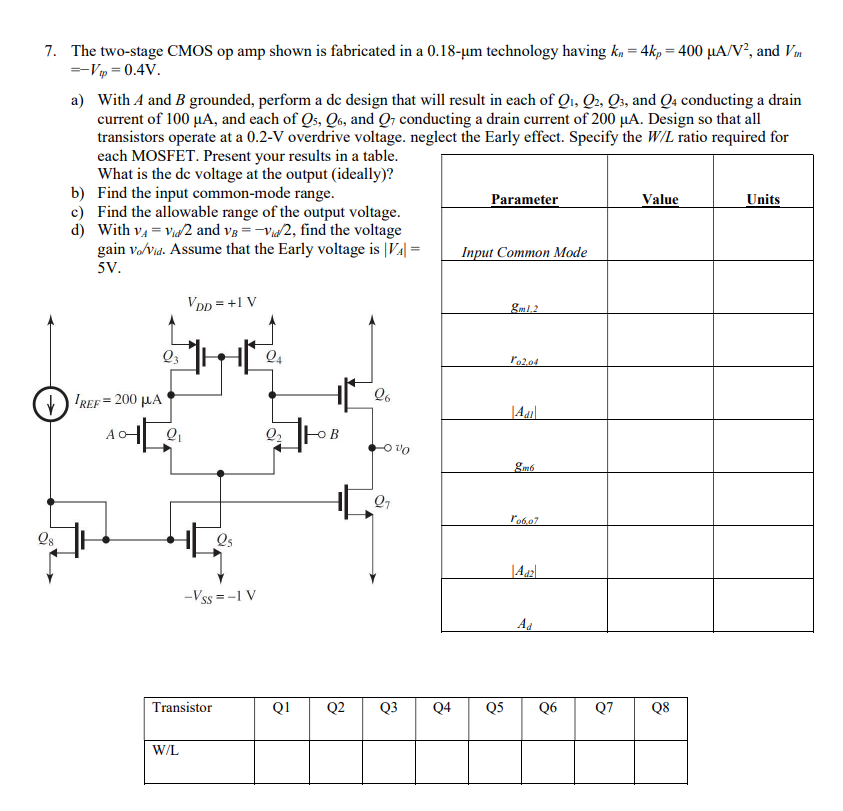

7. The two-stage CMOS op amp shown is fabricated in a \( 0.18-\mu \mathrm{m} \) technology having \( k_{n}=4 k_{p}=400 \mu \mathrm{A} / \mathrm{V}^{2} \), and \( V_{t n} \) \( =-V_{t p}=0.4 \mathrm{~V} \). a) With \( A \) and \( B \) grounded, perform a de design that will result in each of \( Q_{1}, Q_{2}, Q_{3} \), and \( Q_{4} \) conducting a drain current of \( 100 \mu \mathrm{A} \), and each of \( Q_{5}, Q_{6} \), and \( Q_{7} \) conducting a drain current of \( 200 \mu \mathrm{A} \). Design so that all transistors operate at a \( 0.2-\mathrm{V} \) overdrive voltage. neglect the Early effect. Specify the \( W / L \) ratio required for each MOSFET. Present your results in a table. What is the dc voltage at the output (ideally)? b) Find the input common-mode range. c) Find the allowable range of the output voltage. d) With \( v_{A}=v_{i d} / 2 \) and \( v_{B}=-v_{i d} / 2 \), find the voltage gain \( v_{o} / v_{i d} \). Assume that the Early voltage is \( \left|V_{A}\right|= \)
