(Solved): 6. SHEAR IN BEAMS Analysis and design of reinforced concrete Beams for shear-ACl code - HW4 The be ...

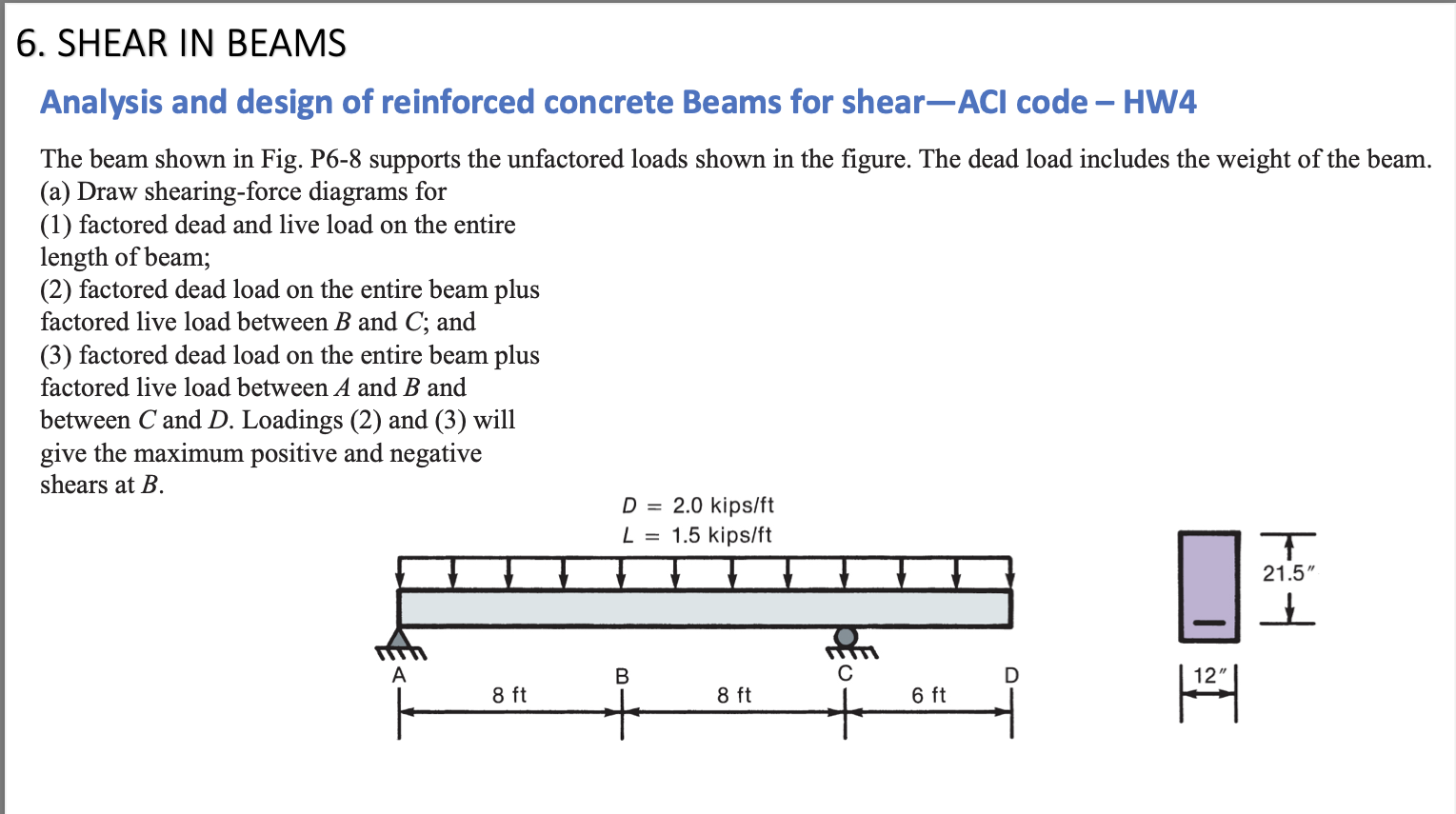

6. SHEAR IN BEAMS Analysis and design of reinforced concrete Beams for shear-ACl code - HW4 The beam shown in Fig. P6-8 supports the unfactored loads shown in the figure. The dead load includes the weight of the beam. (a) Draw shearing-force diagrams for (1) factored dead and live load on the entire length of beam; (2) factored dead load on the entire beam plus factored live load between \( B \) and \( C \); and (3) factored dead load on the entire beam plus factored live load between \( A \) and \( B \) and between \( C \) and \( D \). Loadings (2) and (3) will give the maximum positive and negative
