(Solved): 6. Find the piecewise-linear equivalent circuit for the diode of Fig. 1.15. Use a straight-line se ...

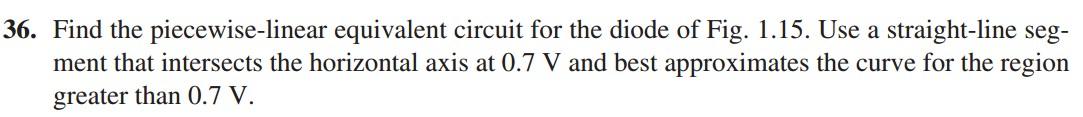

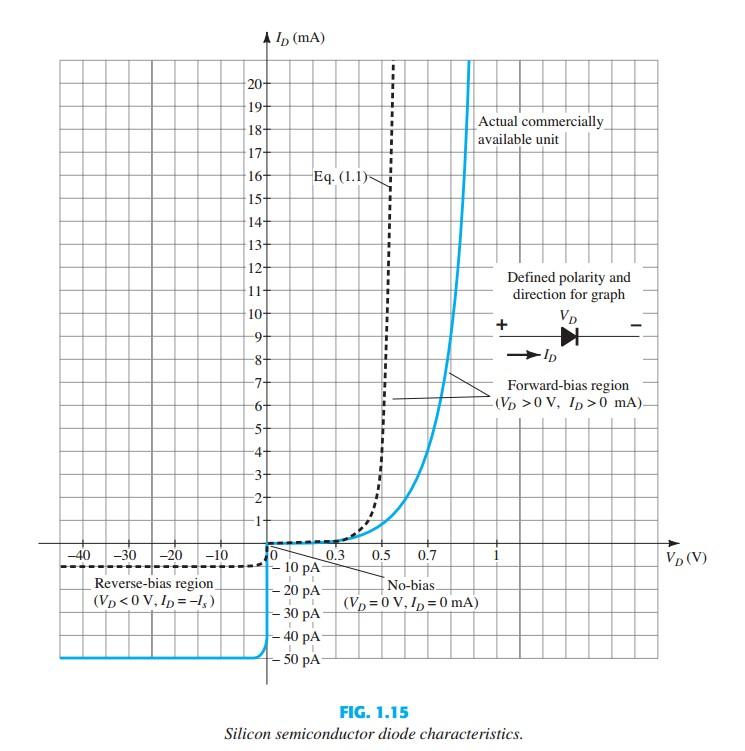

6. Find the piecewise-linear equivalent circuit for the diode of Fig. 1.15. Use a straight-line segment that intersects the horizontal axis at \( 0.7 \mathrm{~V} \) and best approximates the curve for the region greater than \( 0.7 \mathrm{~V} \). Silicon semiconductor diode characteristics.
